Supports -20°C to 60°C operation, ensuring stable performance across diverse and extreme environments.
IP66 Protection Rating
Fanless Design
Fanless design reduces moving parts, lowers failure rates, extends product life, and avoids dust accumulation issues.
Adopts IP66 protection rating design to prevent dust and moisture ingress, ensuring stable operation in harsh environments.
Wide Temperature
AMAX
Edge
Controller AMAX Series
Controller AMAX Series

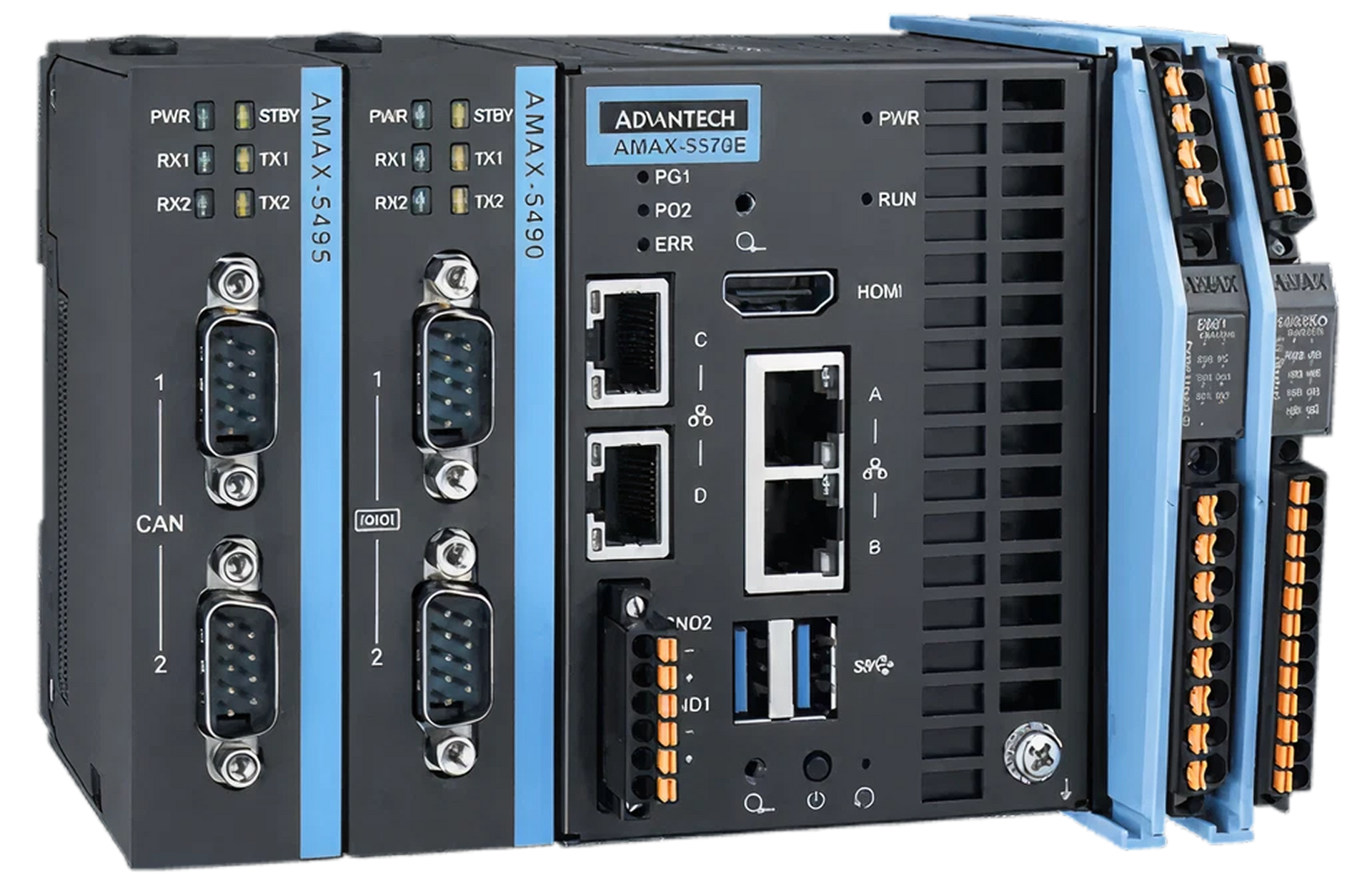

AMAX-5 Series: Ultra-compact edge control merging CODESYS Softlogic and EtherCAT. Its dual-sided modular architecture seamlessly integrates controllers, AMAX-5000 Slice I/O, and PCIe modules into one deterministic system for maximum scalability and performance.
EtherCAT Technology
Software Control
Latest-Generation CPU
Optimized Real-time Kernel
IoT Function Blocks
Leading the Industrial Control Revolution Through Edge Innovation
Performance. Flexibility. Industrial Integrity.
Addresses the Growing Demand for Integrated, Intelligent Control
The integration of IT and OT demands control that conquers complexity, ensures deterministic speed, and offers unmatched scalability. The AMAX-5 Series, built for Modular Edge Control, meets this need by fusing dual-sided hardware architecture with real-time software.
VIEW ALL PRODUCTS

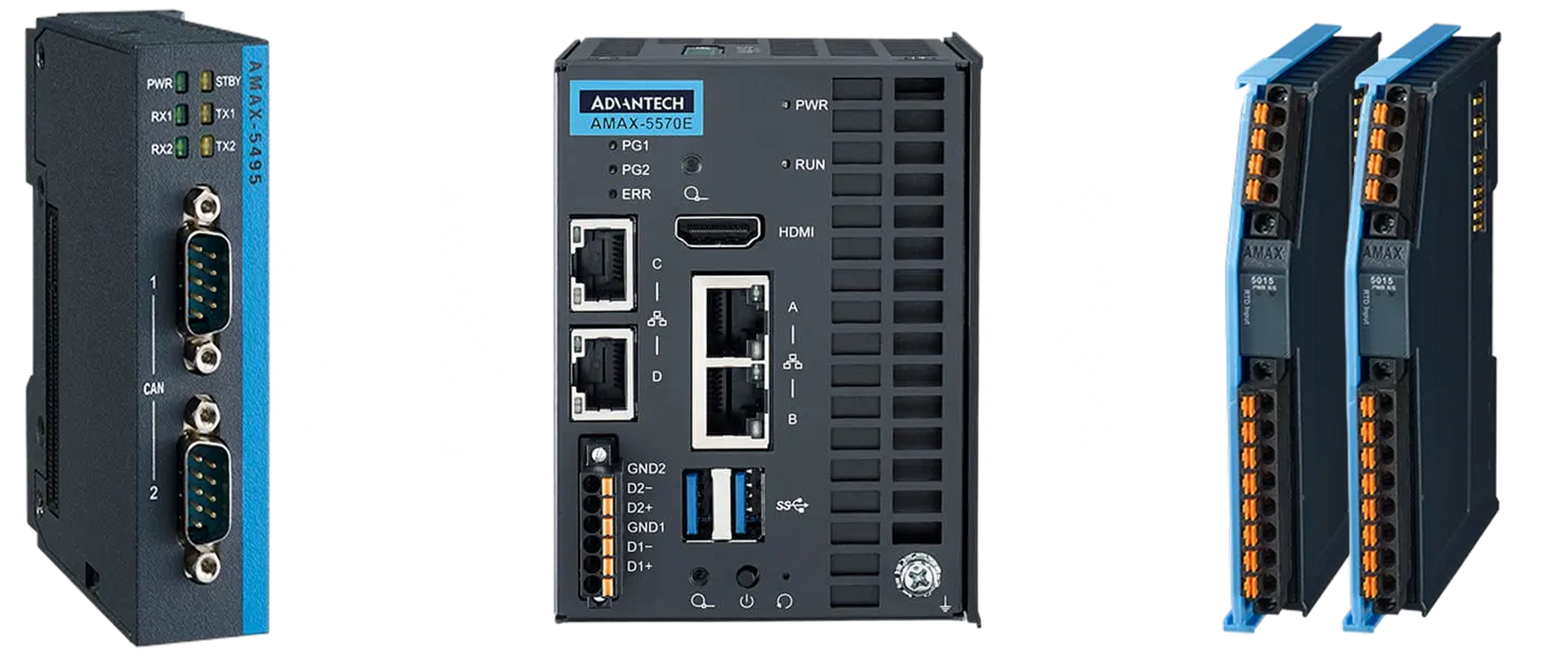

Dual-Sided Scalability

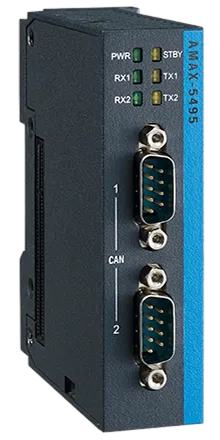

Unique architecture supports simultaneous expansion with AMAX-5000 EtherCAT Slice I/O modules on the right and PCIe-based AMAX-5400/DAQ modules on the left.
Scalable Performance Range
Select from energy-efficient Intel Atom® (AMAX-5570) to powerful Intel® Core™ (AMAX-5570E) processors to match your application's computing and work consolidation needs.
EtherCAT Real-Time Connectivity

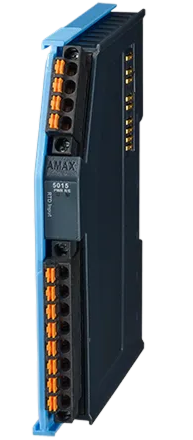

Integrates AMAX-5000 Slice I/O modules (12 mm width) for high-speed, deterministic I/O, including specialized Timestamp and Encoder/Counter modules.

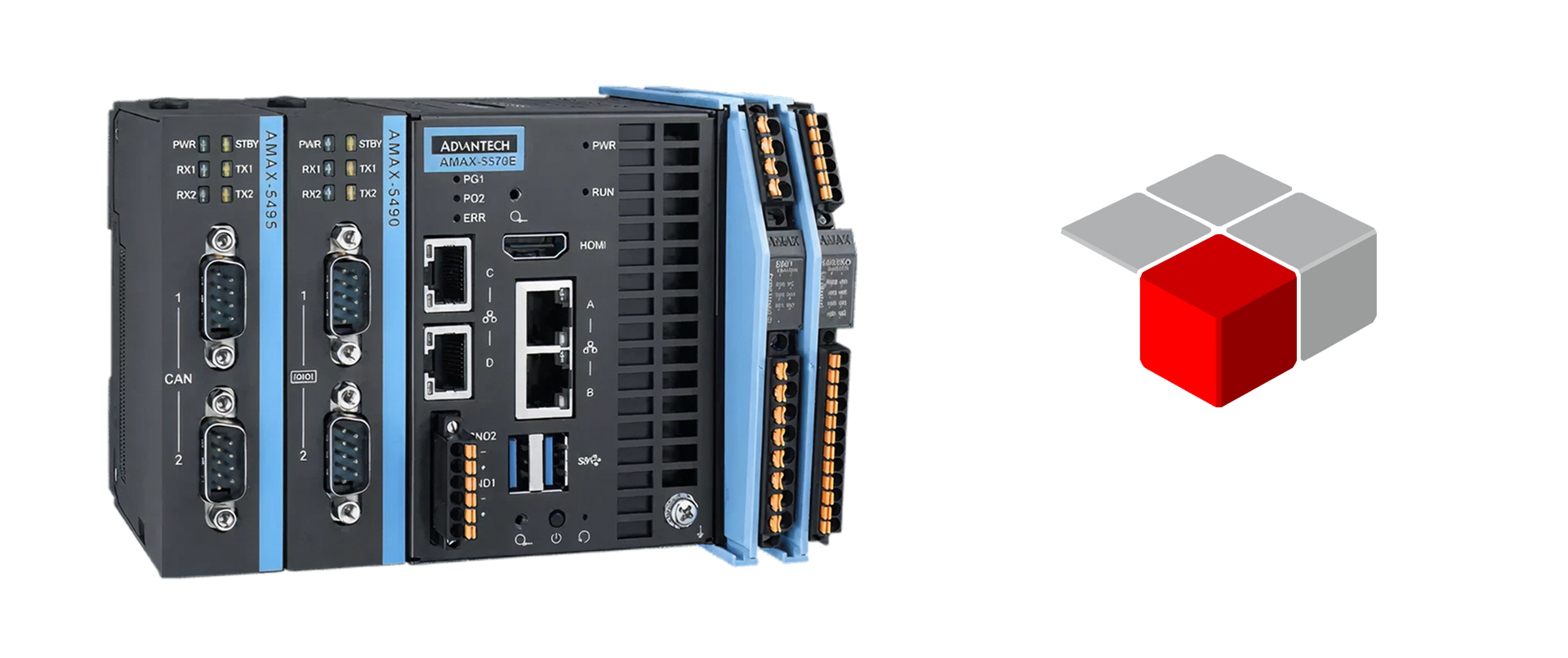

CODESYS & Data Bridge Ready
Supports IEC 61131-3 softlogic control and seamless IT/OT convergence via built-in CODESYS, OPC UA, and MQTT capabilities.
Enhanced Durability & Reliability
Engineered for harsh conditions with wide temperature support (up to -20~60°C) and superior shock resistance (50G) and electrical isolation.
Ultra-Compact Modular Design
Minimize footprint with ultra-compact form factors (down to 48.8×100×70mm) and DIN-rail mounting for space-constrained installations.
Engineering for Integration and Real-time Speed
AMAX-5 Series: Core Enabling Technologies
HOW TO BUILD YOUR SYSTEM
CONFIGURATION Selection Guide
Select Platform
Ultra-stable Jitter
20μs ~ 30μs
Cycle Time
500μs ~ 1ms
Jitter Reduction
90%
Max SubDevices
65,534
EXPLORE AMAX ECOSYSTEM
