Experience Transformative

Machine Visualization!

Exceptional Connectivity

Comprehensive links between PLCs with easy access to the cloud

Intuitive Visualization

Object-oriented HMI Software HMINavi free support in WOP series operator panels

Reliable Design

WOP series boasts wide operating temperatures and an IP66-rated front panel

WOP Series Operator Panels with Industrial-Grade Design

Ensure Reliable Field Implementation

6 screen sizes ensure flexible installation in a variety of work environments

Conformal coating mother boards increase 80% lifecycle

IP66-rated waterproof front panel

-15 ~ 65°C wide operating temperature

Safety certification UL 61010-1 & UL 61010-2-201

Isolation power input design and 20W low power consumption

Reliable Real-Time OS Reduces Security Issues

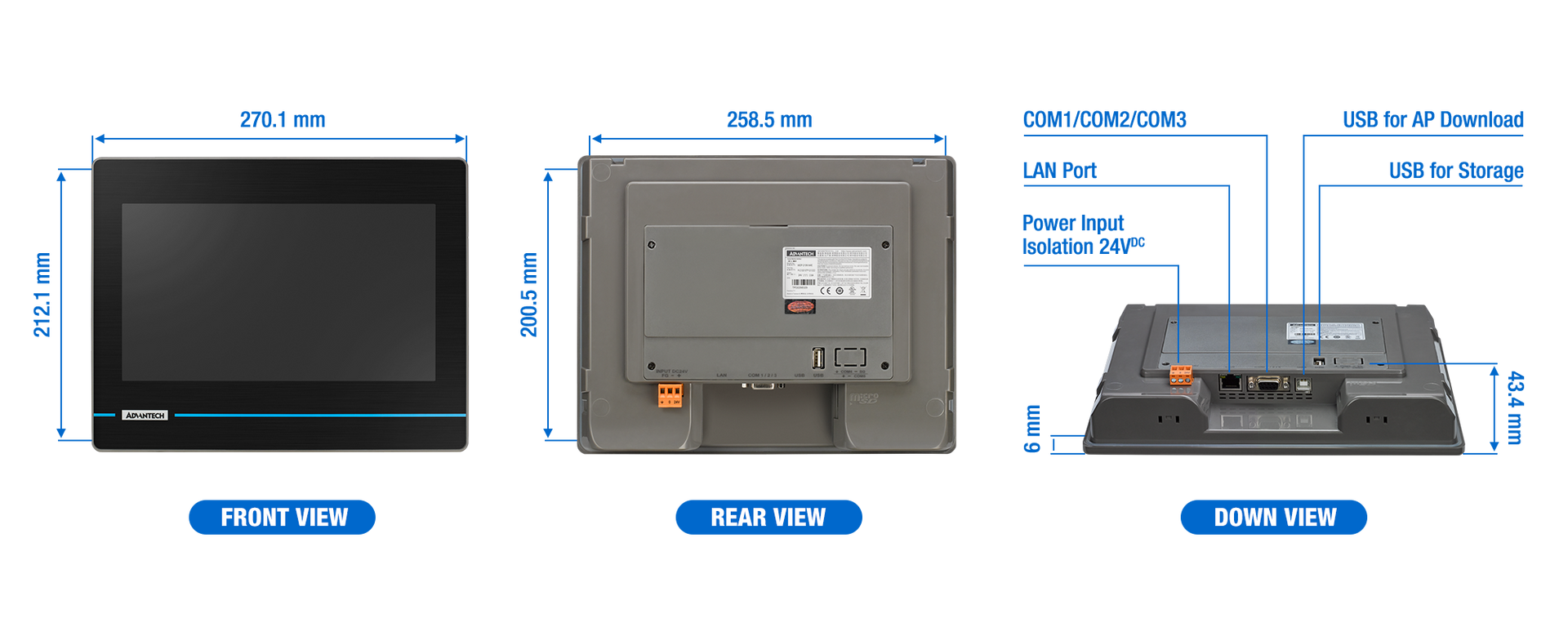

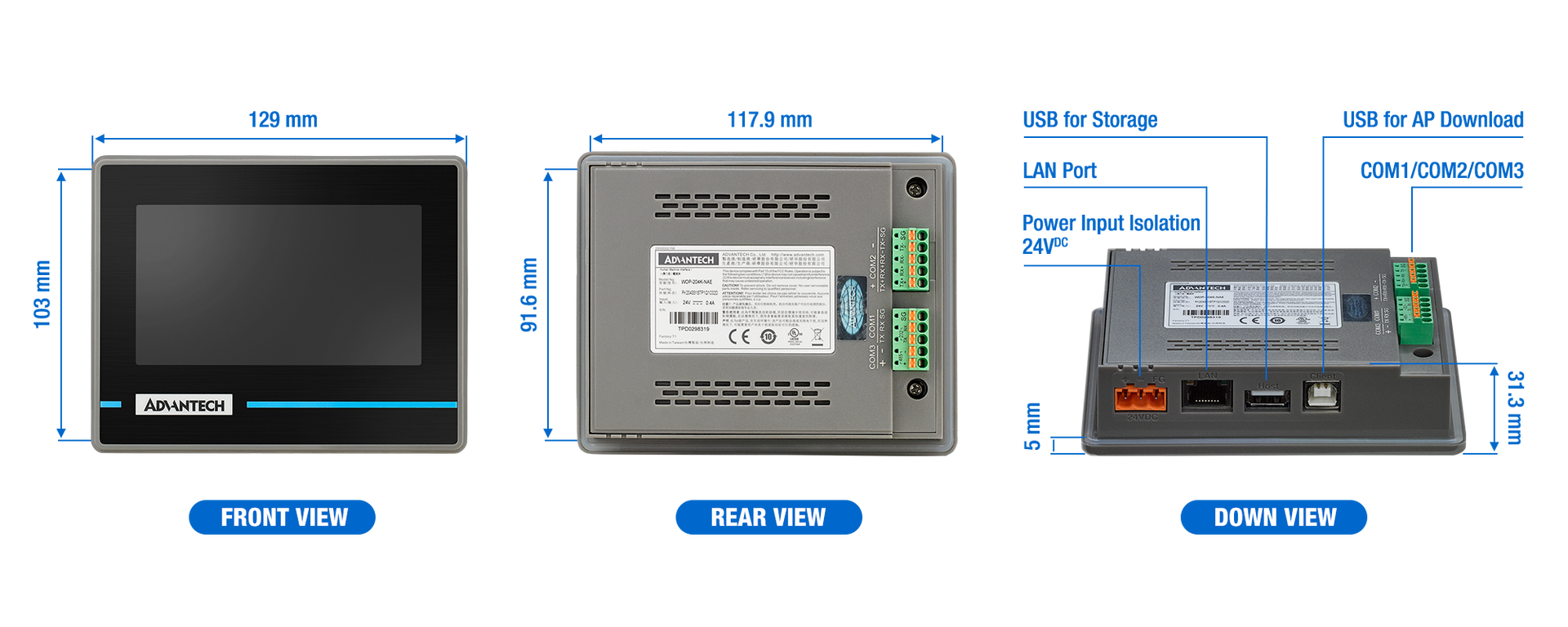

Panel Cutout Dimensions: 118.5 x 92.5 mm

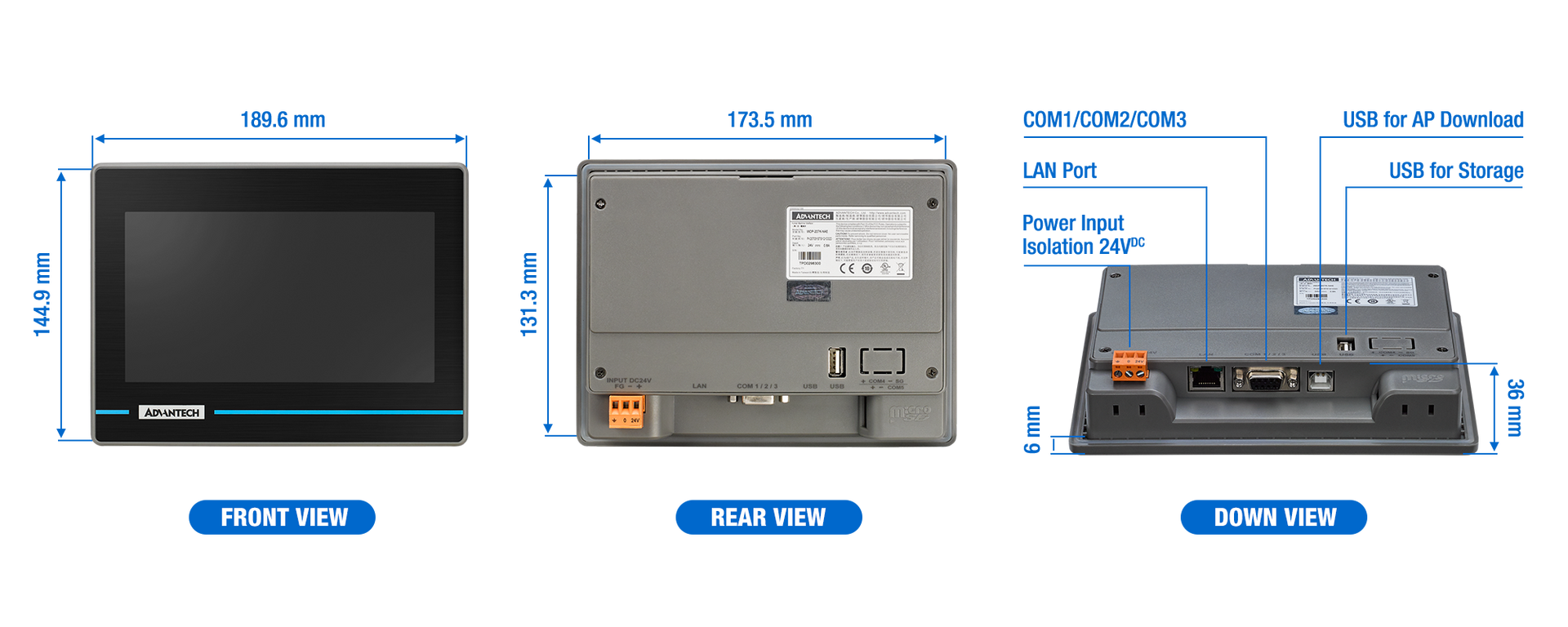

Panel Cutout Dimensions: 175 x 132.5 mm

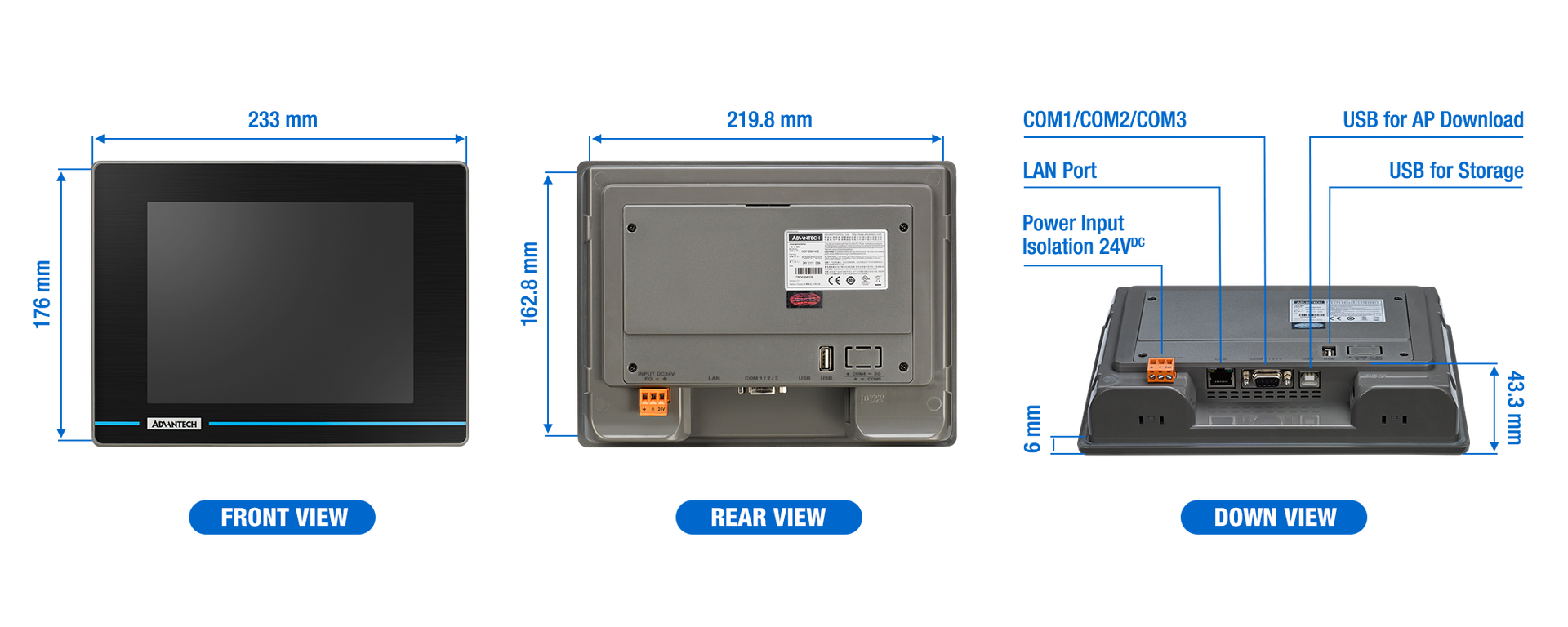

Panel Cutout Dimensions: 221 x 164 mm


Panel Cutout Dimensions: 259.5 x 201.5 mm

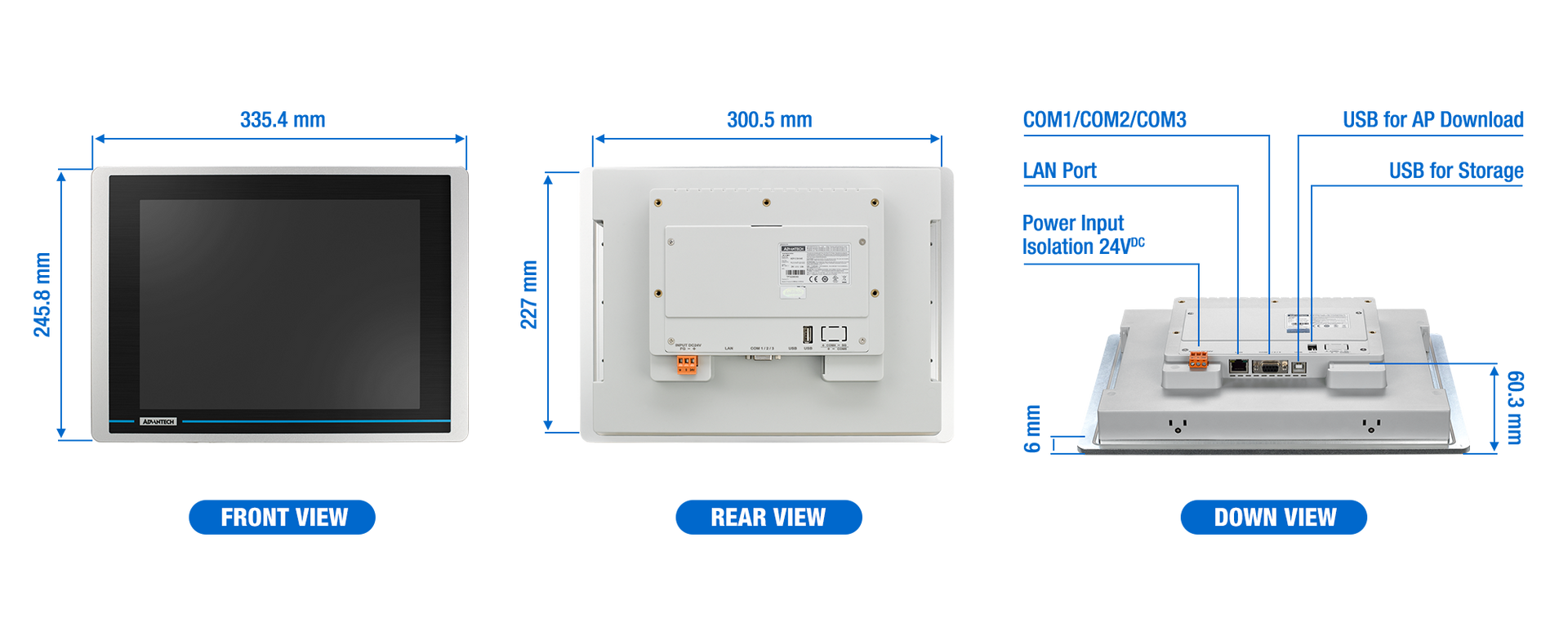

Panel Cutout Dimensions: 302 x 228.5 mm

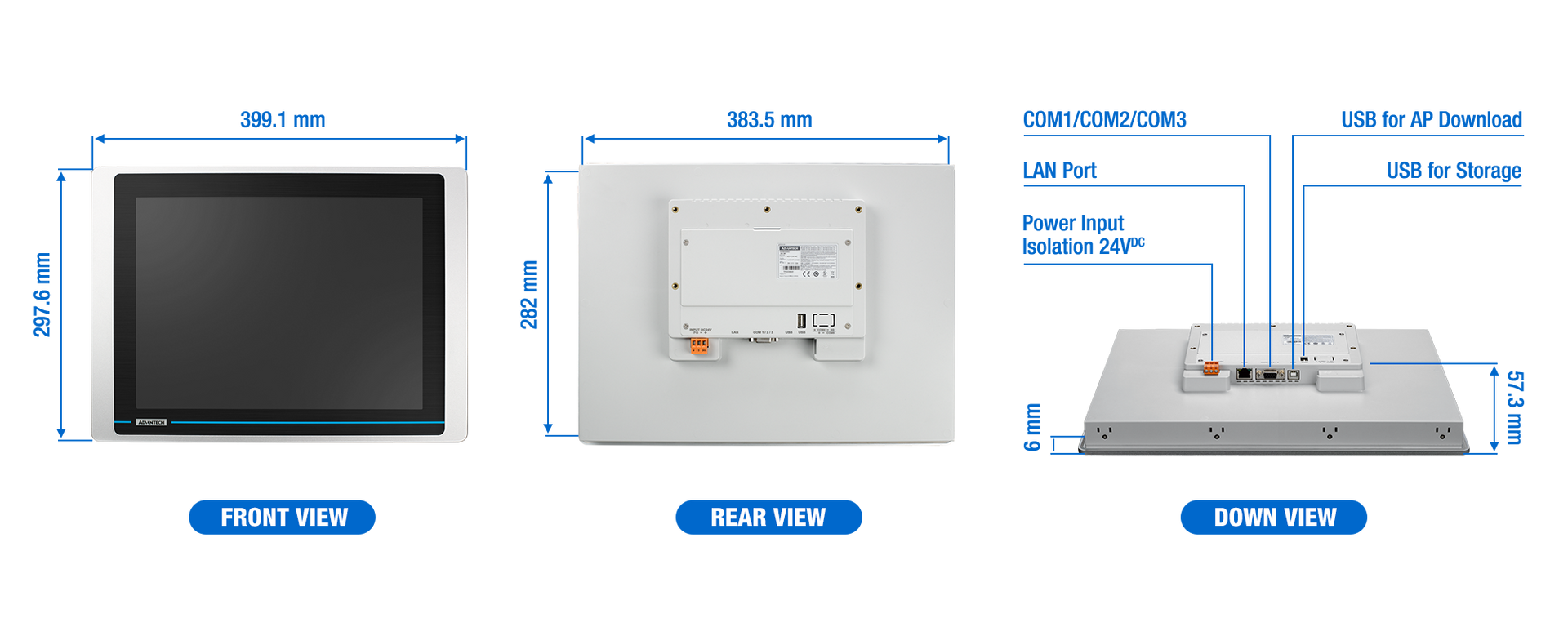

Panel Cutout Dimensions: 384.5 x 283 mm


Upgrade Your System with WOP Series and HMINavi

Save 10% Now!

Operator Panels

WOP-204K-SAE
WOP-204K-SAE

4.3" WQVGA, 64MB, 128MB(NAND), Serialx3

US$250.00 US$225.00

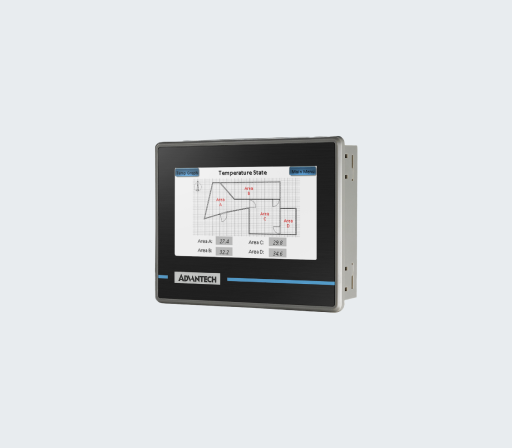

WOP-204K-NAE
WOP-204K-NAE

4.3" WQVGA, 64MB, 128MB(NAND), Serialx3, Ethernet

US$266.00 US$240.00

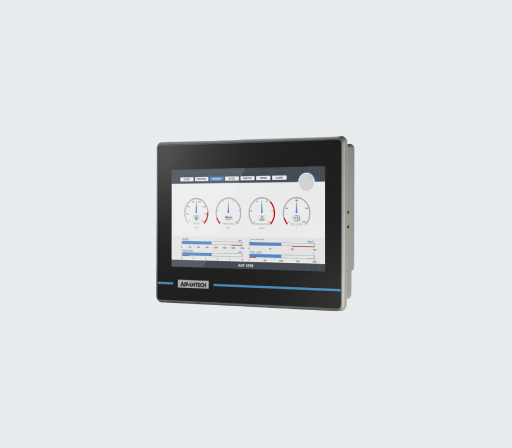

WOP-207K-SAE
WOP-207K-SAE

7" WVGA, 64MB, 128MB(NAND),Serialx3

US$322.00 US$290.00
WOP-207K-NAE
WOP-207K-NAE

7" WVGA, 64MB, 128MB(NAND), Serialx3,Ethernet

US$355.00 US$320.00

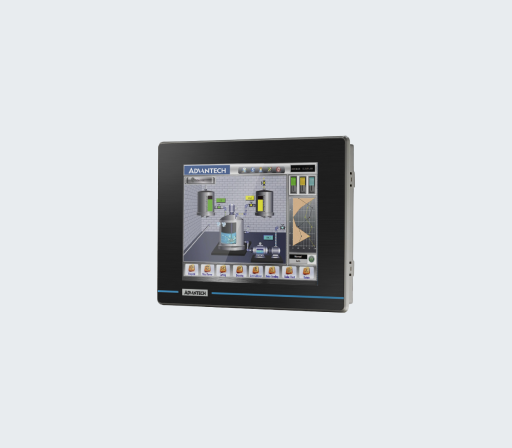

WOP-208K-NAE
WOP-208K-NAE

8" SVGA, 64MB, 128MB(NAND), Serialx3,Ethernet

US$711.00 US$640.00

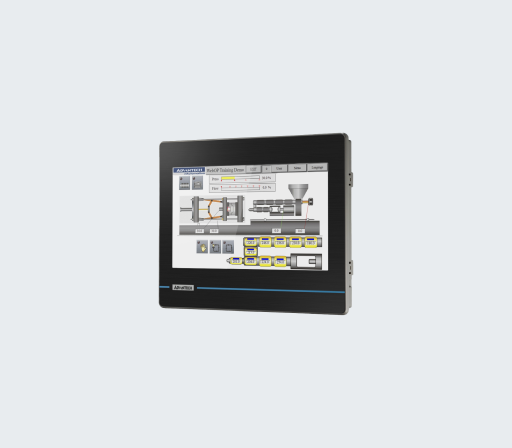

WOP-210K-SAE
WOP-210K-SAE

10.1" WSVGA, 64MB, 128MB(NAND), Serialx3

US$800.00 US$720.00
WOP-210K-NAE
WOP-210K-NAE

10.1" WSVGA, 64MB, 128MB(NAND), Serialx3, Ethernet

US$855.00 US$770.00

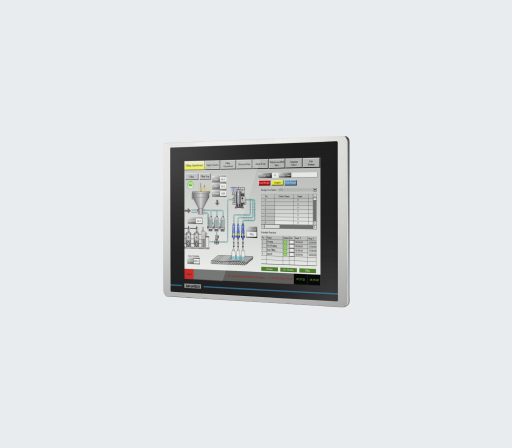

WOP-212K-NAE
WOP-212K-NAE

12" XGA, 64MB, 128MB(NAND), Serialx3,Ethernet

US$988.00 US$890.00

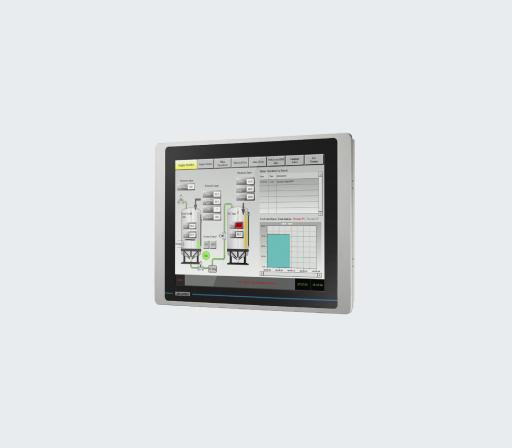

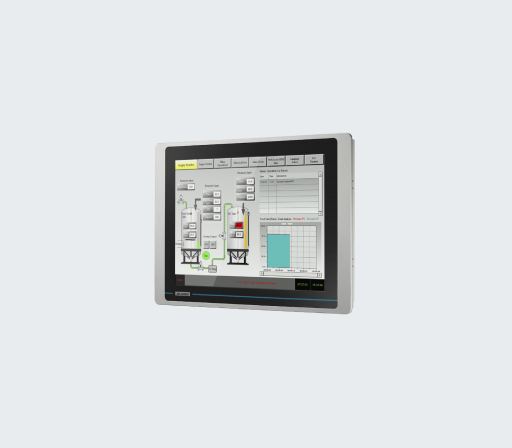

WOP-215K-NAE
WOP-215K-NAE

15" XGA, 64MB, 128MB(NAND), Serialx3,Ethernet

US$1,166.00 US$1,050.00

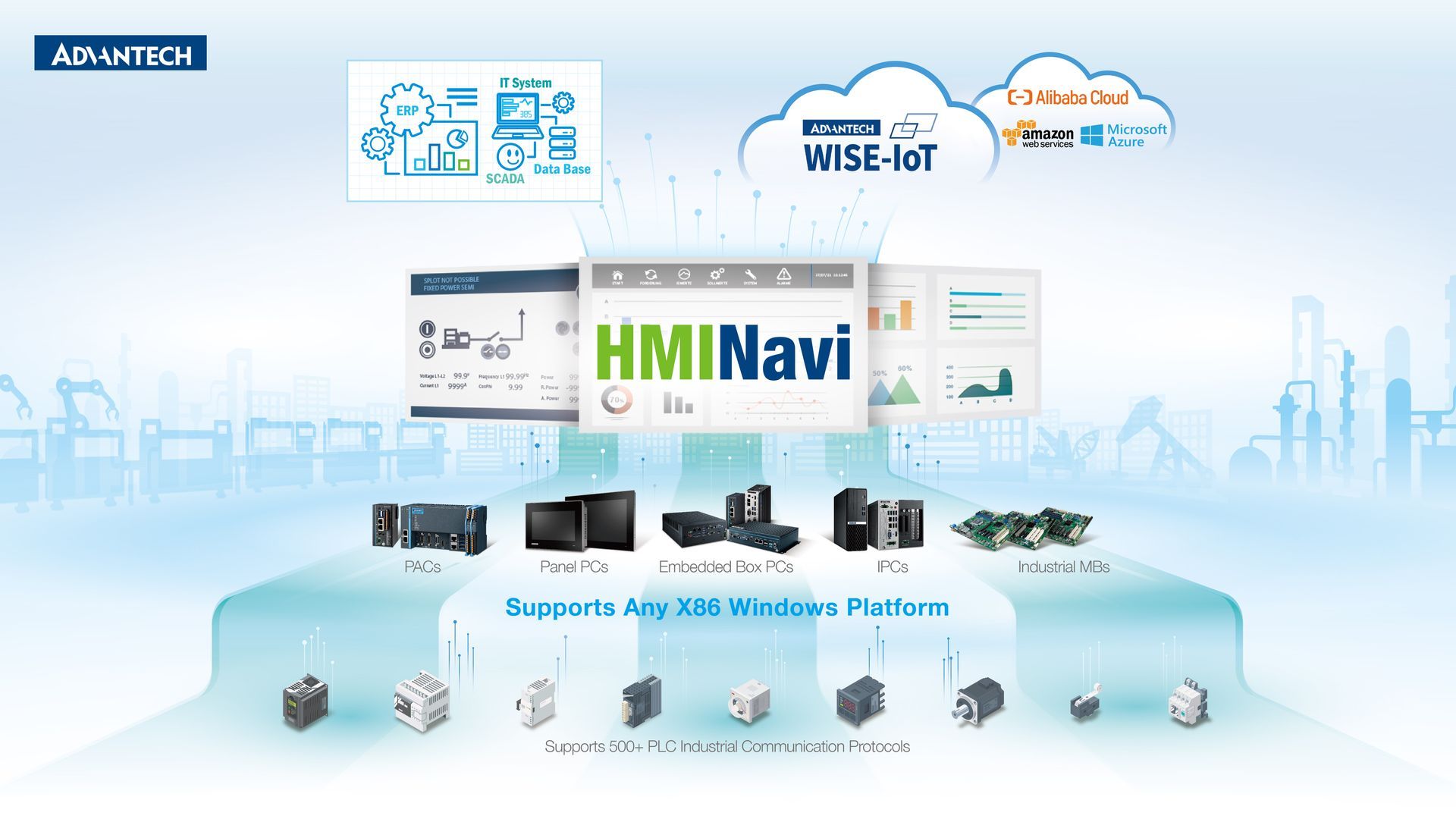

HMINavi Powers Unprecedented Intuitive Machine Visualization

Advantech’s operator panel WOP series and HMINavi software offer key advantages in machine and system control with the capability to connect to over 500 types of PLCs. This feature significantly enhances operational efficiency in various industrial environments. The interfaces, known for their intuitive touch controls and customizable features, are optimized for smart technology integration, enabling superior process management and efficient data exchange.

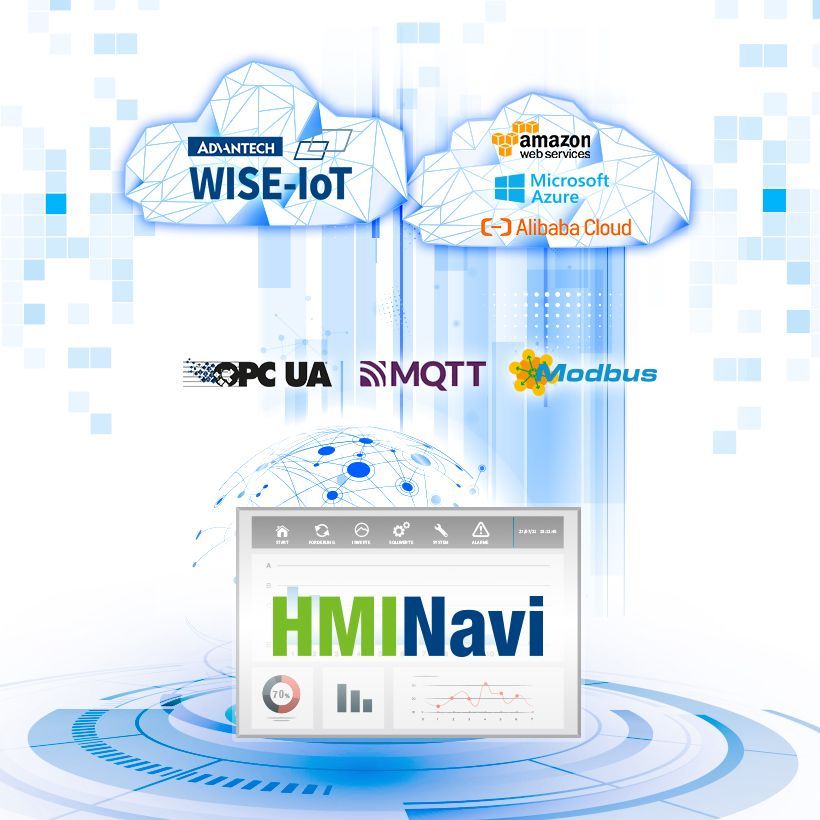

Achieve Easy Access to the Cloud with the MQTT Protocol

HMINavi simplifies OT & IT integration using the latest MQTT uplink communication protocol. Users can effortlessly transform legacy machinery into intelligent systems, with all critical data and backups handled by cloud services.

Supports 500+ PLC Industrial Communication Protocols

HMINavi can connect to 90% of global PLC devices. The data exchanger function can easily exchange various types of PLC data. Its powerful connectivity makes HMINavi a perfect fit for existing or future IoT solutions.

Data Management

  • Alarm Management
  • Historical Data Logger
  • Operation Data Logger
  • Recipe Management
  • Documentation CSV Format
  • Documentation PDF Format

Security Protection

  • Project File Protection
  • Screen Protection
  • Due Date Protection
  • Runtime Load Protection
  • User Level Protection
  • User Group Protection

Data Exchange

  • Breakpoint Resume
  • OPC UA Server/Client
  • VB Script User Coding
  • JScript User Coding
  • Browser/Media Container
  • Database Connection

Object-Oriented

  • Switch Button Object Unit
  • Unlimited Internal Tags
  • Schedule Table Control
  • Macros Script Control
  • Data Exchange
  • Uplink Communication

Data Visualization

  • Lamps Display
  • Data Historic Curve & Trend
  • Single Record Line Chart
  • Historic Path Trend Graphic
  • Bar Chart Display
  • Animated Graphic
  • Bar Graphic Display
  • Meter & Circular Display
  • Pipeline Display
  • Path Display
  • Rotation Indicator
  • Historic Radar Chart

HMINavi Provides Comprehensive Visualization Functions

Simplified 3-Step PLC Controller Integration

1. Create a Project & Link

  • Initiate a new project and create a new link.
  • Select the connection type (Serial/Ethernet).

2. Select your PLC Model

  • Choose the PLC brand.
  • Select the PLC type/model.

3. Parameter Setup

  • Configure baud rate transmission.
  • Set up the IP address/port/sub-link.

Test Your Project on a Simulation

Explore the simulation for 60 minutes without any license key required. It is available for both online and offline use.

Engineering Design Tool & Runtime Engine

  • HMINavi Designer Software:
    supports Windows 7/10.
  • HMINavi Runtime Engine Software:
    A runtime license is required for the x86 Windows platform.

Start Your Journey with HMINavi

Upgrade Your System with WOP Series and HMINavi

Save 10% Now!

HMINavi Runtime Software

Compatible With Any x86 System

HMINavi
36OTAHMI0100A1

HMINavi Runtime V4.0 100 tags S/W license

US$89.00 US$80.00
HMINavi
36OTAHMI0600A1

HMINavi Runtime V4.0 600 tags S/W (Extension)

US$222.00 US$200.00
HMINavi
36OTAHMI1200A1

HMINavi Runtime V4.0 1200 tags S/W license

US$377.00 US$340.00
HMINavi
36OTAHMI2400A1

HMINavi Runtime V4.0 2400 tags S/W license

US$611.00 US$550.00
HMINavi
36OTAHMI6000A1

HMINavi Runtime V4.0 6000 tags S/W license

US$1,222.00 US$1,100.00
HMINavi
36OTAHMI9900A1

HMINavi Runtime V4.0 9900 tags S/W license

US$1,888.00 US$1,700.00
HMINavi
36OTAHMI002UA1

HMINavi Runtime V4.0 2400 tags S/W USB Dongle

US$888.00 US$800.00
HMINavi
36OTAHMI009UA1

HMINavi Runtime V4.0 9900 tags S/W USB Dongle

US$2,222.00 US$2,000.00
HMINavi
36OTAHMI030UA1

HMINavi Runtime V4.0 30000 tags S/W USB Dongle

US$3,333.00 US$3,000.00
HMINavi
36OTAHMI030KA1

HMINavi Runtime V4.0 30000 tags S/W license

US$2,777.00 US$2,500.00

Powerful Open HMI Software Beyond Your Imagination
