RUN DATA-INTENSIVE AI APPLICATION
WORRY-FREE WITH

PCIe Gen4x4 NVMe SSDs

Maximize System Efficiency with Advantech Ultra High Performance SQFlash SSDs

Advantech’s NVMe SSDs excel in providing unmatched data transfer rates and reduced latency, meeting the real-time processing needs of AI applications. They handle thousands of concurrent commands, facilitating efficient simultaneous data operations crucial for executing AI algorithms. With their non-volatile nature, these drives ensure data integrity by retaining information without power, vital for preserving AI progress and learning outcomes. Moreover, their direct CPU access bypasses slower interfaces, optimizing data transfer and enhancing the overall efficiency of AI processing tasks.

SQFlash Ultra-Speed Rugged NVMe PCIe Gen4 SSD Solution for AI & HPC

Comprehensive Security

  • TCG-OPAL compliant
  • Crypto Erase and Military Erase
  • Trellix & Acronis software integration

High-Endurance Solutions

  • Industrial extended temperature support
  • DeviceOn/SQ Manager delivers endurance and reliable monitoring

Power Failure Protection

  • Comprehensive protection ensures data integrity
  • Built-in voltage stabilizer for internal power supply
  • Reliable startup power sequence

Thermal Solution on NVMe SSD

  • Industrial heatsink cools SSD by up to 30 °C
  • Flexible thermal grease prevents physical damage
  • Smart thermal throttling against sudden performance drop
  • Remote health and temperature monitoring

Flexible Customization Service

  • 30-day time to market design-in service
  • Extended longevity: 3 ~ 5 years
  • Early access to the latest Storage technology
  • System integration with FPGA and firmware support

The One-stop IoT Hub for Full High-Endurance NVMe Gen. 4 SSD Solutions

Multiple Payment

Methods

Dispatch in

24 Hrs

Cross-Border

Delivery

Multiple

Currencies

24/7 Online

Support

The Solution Guide That Best Fits Your Needs

Performance Series

SQF-930 series

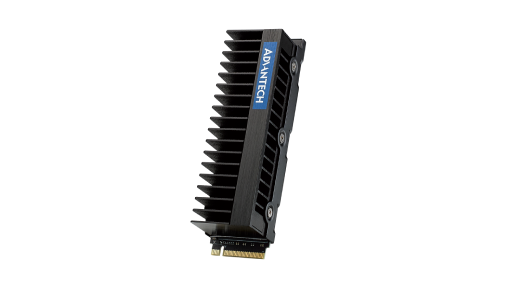

Edge Server

SQF-ER-1 series

Embedded Series

SQF-730 series

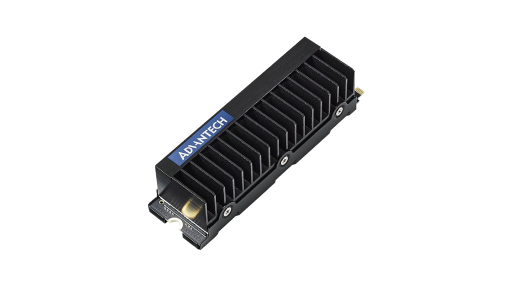

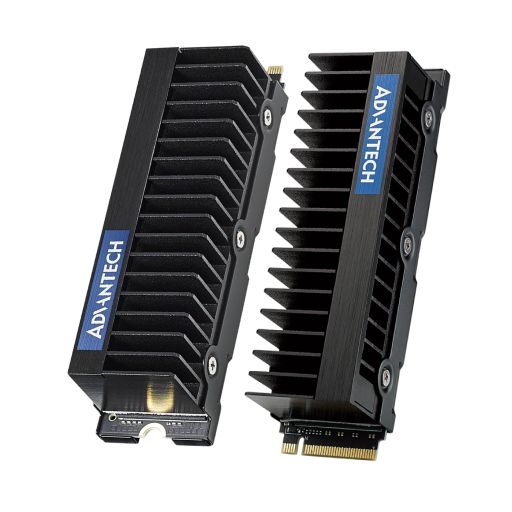

PERFORMANCE SERIES

EDGE SErVER

SQFlash 930 & ER-1

A high Performance PCle Gen.4 / NVMe solution

Parallel Processing

Industrial thermal solution with wide temperature support

An excellent choice for higher accuracy in AI analytics and enterprise server applications

Data Integrity

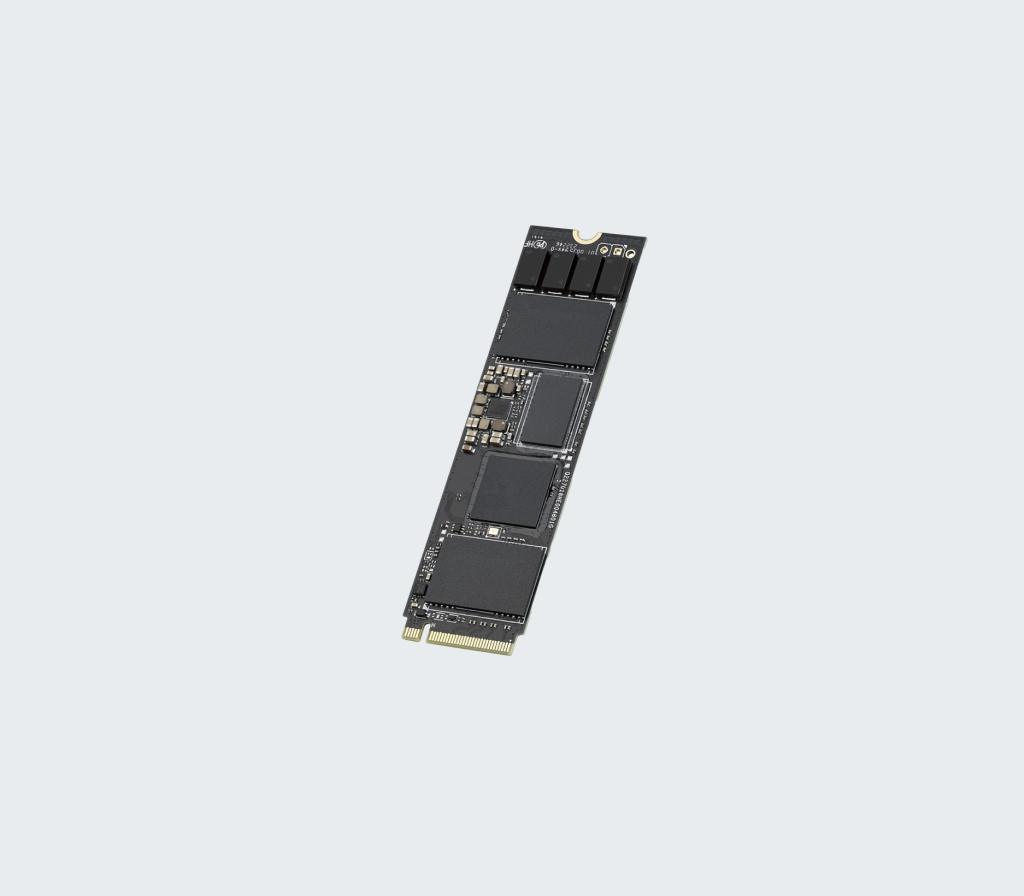

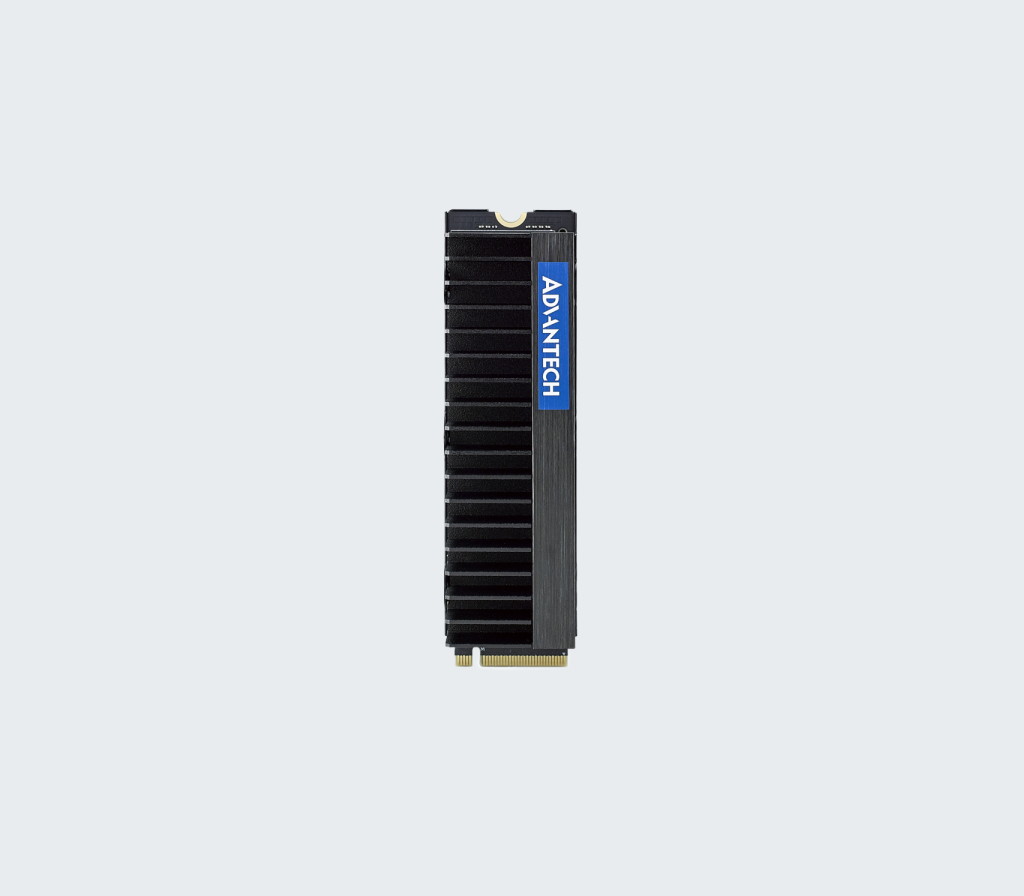

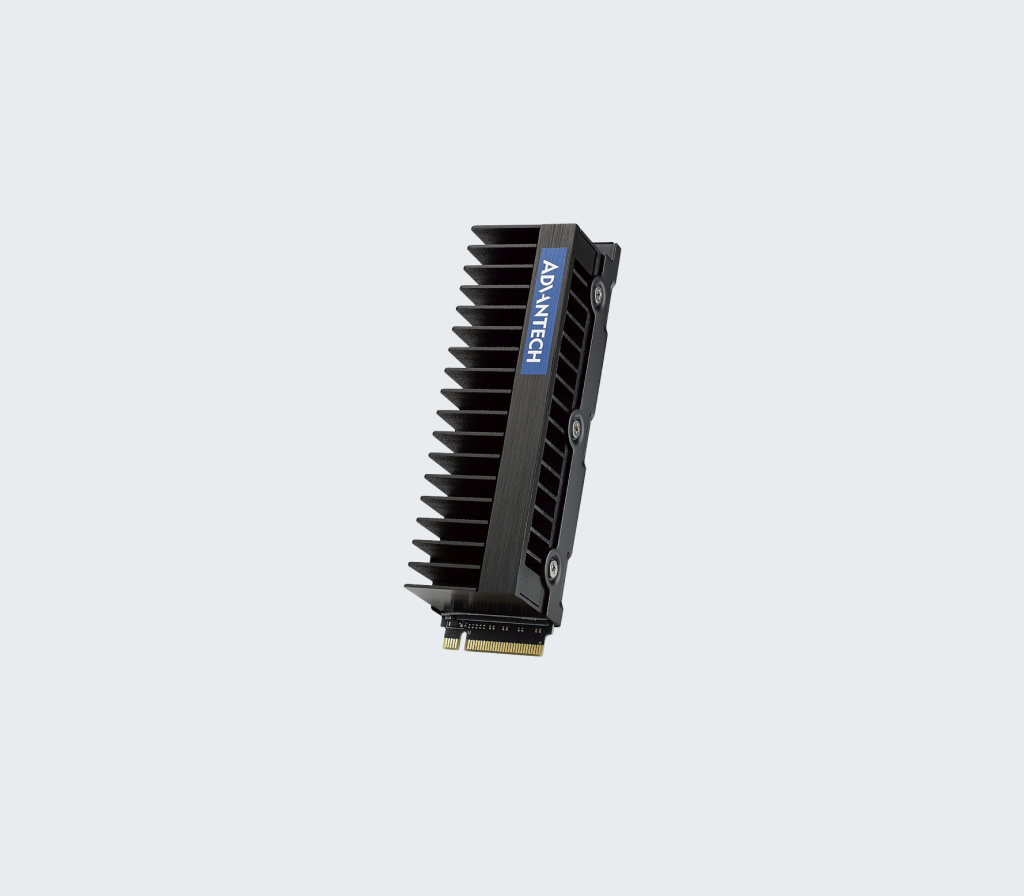

SQF-C8MV4-480GDEEC
SQF-C8MV4-480GDEEC

SQF M.2 2280 920 240G 3D TLC BiCS3 (0~70℃)

US$125.00
SQF-C8MV4-960GDEEC
SQF-C8MV4-960GDEEC

SQF M.2 2280 930 960G 3D TLC BiCS5 (0~70°C)

US$195.00

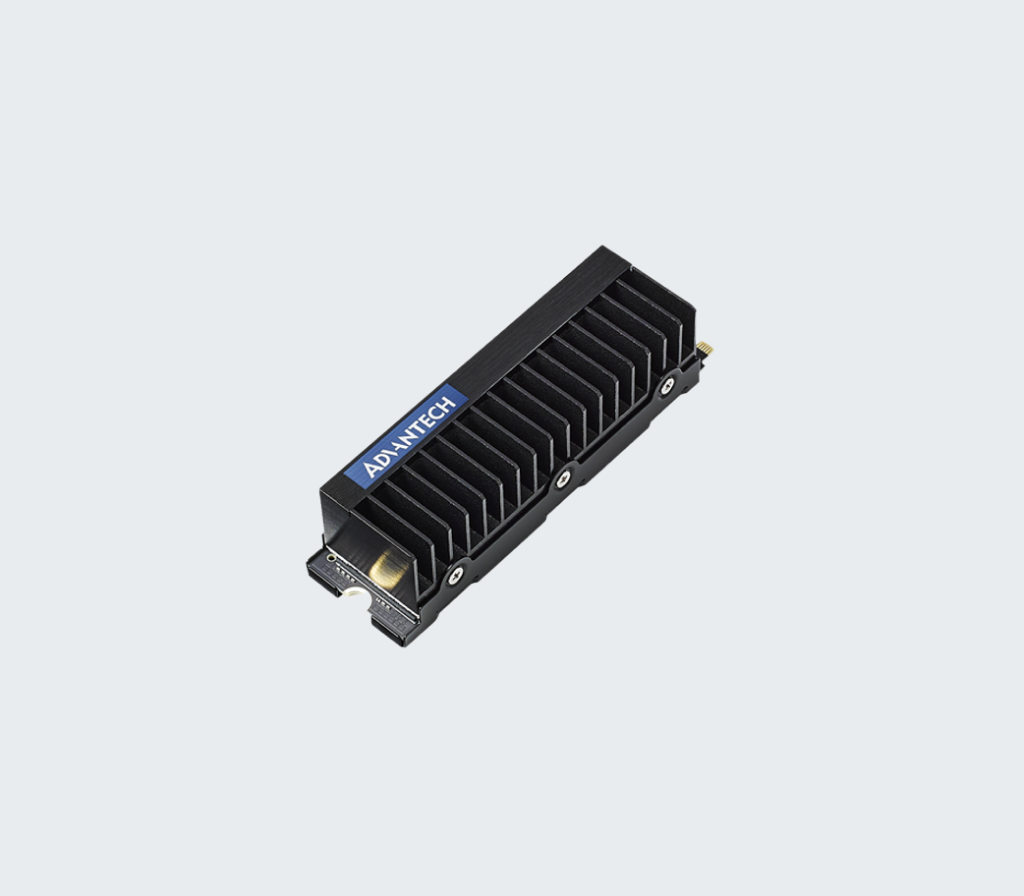

SQF-C8MV4-1K9GDEEC
SQF-C8MV4-1K9GDEEC

SQF M.2 2280 930 1920G 3D TLC BiCS5 (0~70°C)

US$360.00
SQF-C8MV4-3K8GDEEC
SQF-C8MV4-3K8GDEEC

SQF M.2 2280 930 3840G 3D TLC BiCS5 (0~70°C)

US$745.00
SQF-C8MV4-400GDG1C
SQF-C8MV4-400GDG1C

SQF M.2 2280 920 240G 3D TLC BiCS3 (0~70℃)

US$155.00
SQF-C8MV4-800GDG1C
SQF-C8MV4-800GDG1C

SQF M.2 2280 ER-1 800G 3D TLC BiCS5 (0~70℃)

US$240.00
SQF-C8MV4-1K6GDG1C
SQF-C8MV4-1K6GDG1C

SQF M.2 2280 ER-1 1.6T 3D TLC BiCS5 (0~70℃)

US$395.00
SQF-C8MV4-3K2GDG1C
SQF-C8MV4-3K2GDG1C

SQF M.2 2280 ER-1 3.2T 3D TLC BiCS5 (0~70℃)

US$730.00

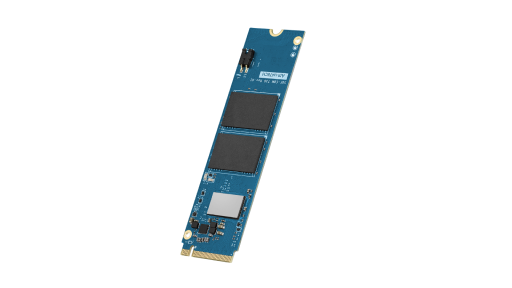

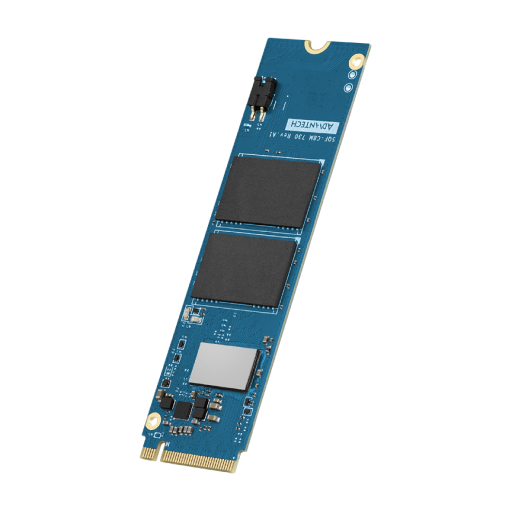

Embedded Series

SQF 730 Series

With error-correction mechanism that ensure efficiency and reliable data processing

  • High-Speed Read/Write Performance
  • Low Power Consumption Ensures Reliability and Durability
  • Designed to Deliver Optimum Performance At a Wide Range of Temperatures

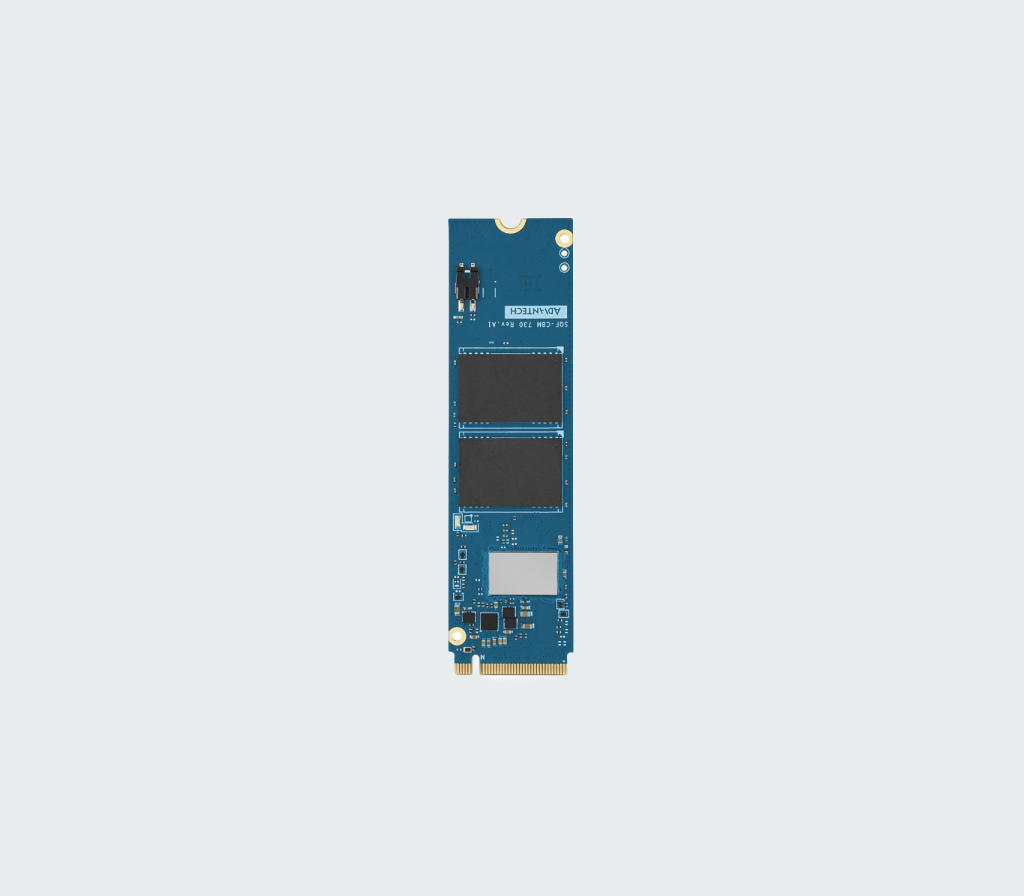

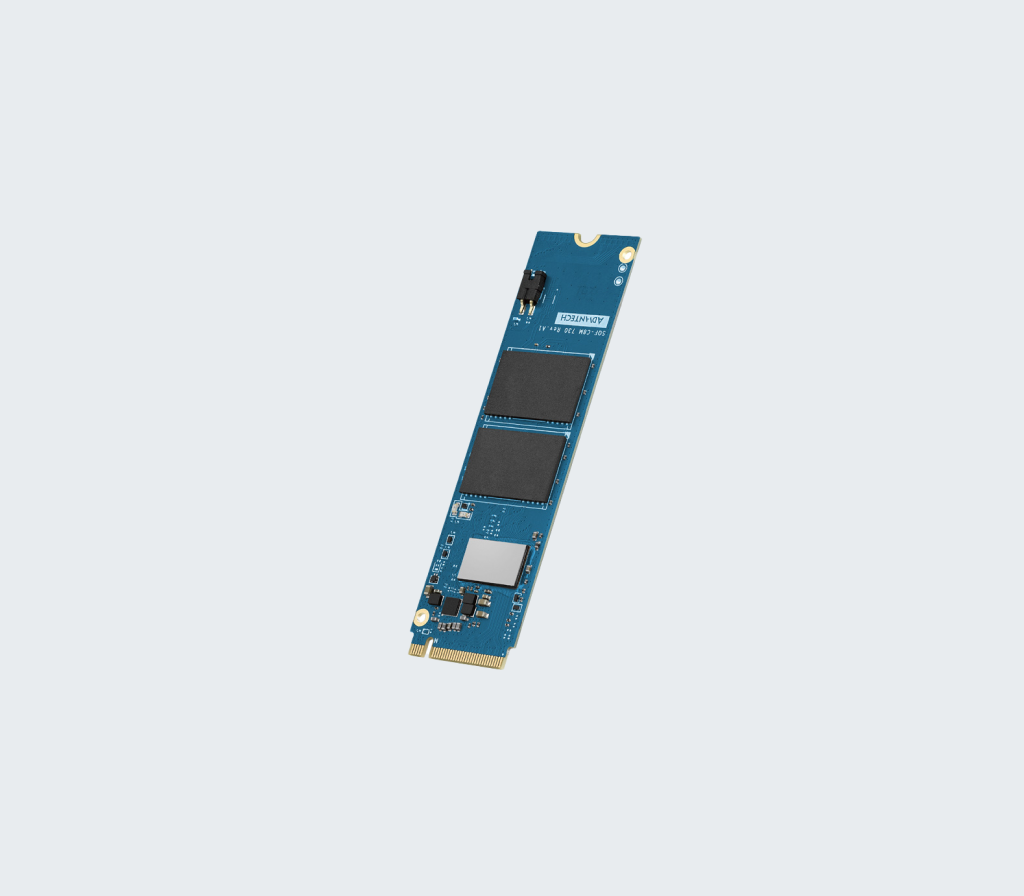

SQF-C8MV2-256GDEFC
SQF-C8MV2-256GDEFC

SQF M.2 2280 730-D 256G 3D TLC BiCS5 (0~70°C)

US$60.00
SQF-C8MV2-512GDEFC
SQF-C8MV2-512GDEFC

SQF M.2 2280 730-D 512G 3D TLC BiCS5 (0~70°C)

US$95.00
SQF-C8MV4-1TDEFC
SQF-C8MV4-1TDEFC

SQF M.2 2280 730-D 1T 3D TLC BiCS5 (0~70°C)

US$160.00
SQF-C8MV4-2TDEFC
SQF-C8MV4-2TDEFC

SQF M.2 2280 730-D 2T 3D TLC BiCS5 (0~70°C)

US$315.00
SQF-C8MV4-4TDEFC
SQF-C8MV4-4TDEFC

SQF M.2 2280 730-D 4T 3D TLC BiCS5 (0~70°C)

US$650.00

NVMe SSD Buying Guide

SQF 930 series SQF ER-1 series SQF 730 series
Form Factor M.2 2280 M.2 2280 M.2 2280 NVMe SSD(NGFF)
Transfer Protocol PCle Gen.4 x4 PCle Gen.4 x4 PCle Gen.4 x4
Connector M.2 M key with PCle pin-out M.2 M key with PCle pin-out M.2 M key with PCle pin-out
Flash Type 3D TLC BiCS5 3D TLC BiCS5 3D TLC BiCS5
Maximum Power Consumption 11W 7.3W 5.3W
Maximum Read / Write Performance (MB/s) Seq.: 7,200 / 6,300 Ran. IOPS@4k: 550k / 1000k Seq.: 6,500 / 5,000 Ran. IOPS@4k: 779k / 753k Seq.: 4,900 / 3,700 Ran. IOPS@4k: 700k / 800k
Op.Temperature 0-70 °C 0-70 °C 0-70 °C
DeviceOn / SQ Manager Supported Supported Supported
Shock 1,500G, Peak / 0.5ms 1,500G, Peak / 0.5ms 1,500G, Peak / 0.5ms
Vibration 20G, Peak / 80-2000Hz 20G, Peak / 80-2000Hz 20G, Peak / 80-2000Hz
