New AI Capabilities

Drastically optimize your production efficiency

Unlock the

What's the difference

between the new AI development kit and system compared to the previous generation?

NVIDIA Orin delivers 3 to 5 times the AI performance of the Xavier generation. With higher AI performance, it can handle more complex AI tasks and support more devices with high-speed interfaces.

Multiple Video Inputs for Camera Integration

PoE (AF/AT)

IP Camera

Thermal Camera

Industrial Camera

LiDAR, RADAR

USB 3.0

Webcam

3D Camera

Industrial Camera

GMSL 2

IP Camera

Thermal Camera

MIC-AI supports mixed-sensors integration and multiple channels best suited for Orin edge AI applications.

Combined with

NVIDIA JETSON SERIES

Delivering computational performance from 2 TOPS to 275 TOPS. Paired with Advantech’s exclusive Edge AI development kit to reduce development time by 50%, ideal for diverse AI applications in agriculture, aquaculture, manufacturing, transportation, and more.

Wide Temperature Operation

Reliable performance across a broad temperature range without the need for cooling fans.

Multiple I/O and Expansion

Versatile connectivity and expansion options for various application needs.

Manufacturing & Robotics

Ideally suited for smart manufacturing, transportation, security, and robotics applications.

Table

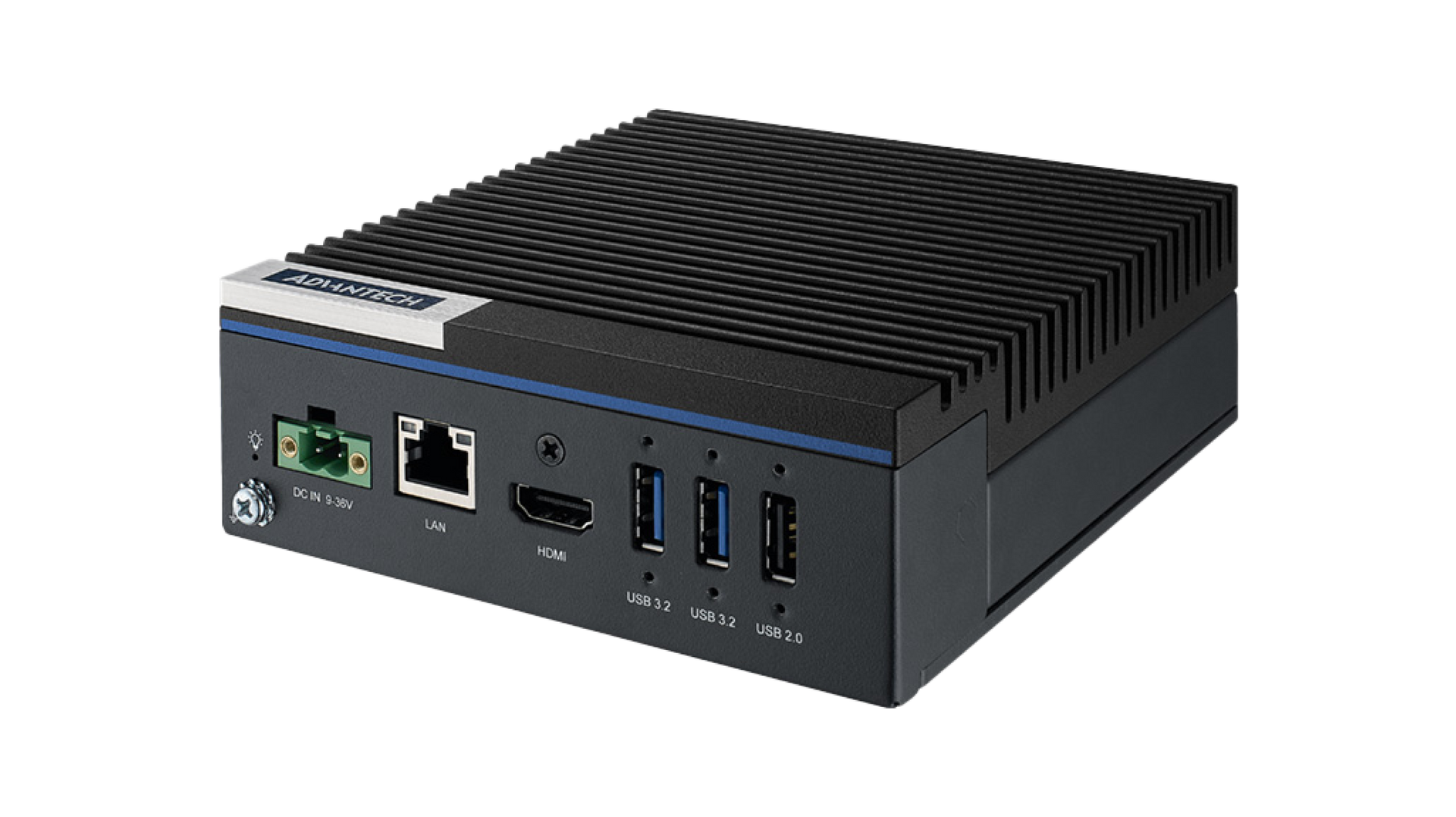

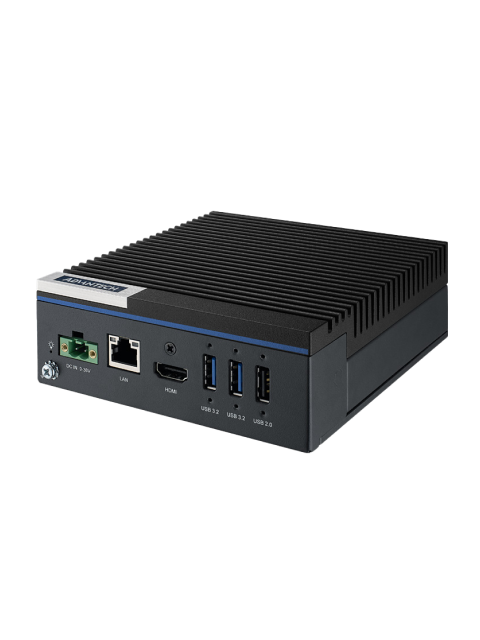

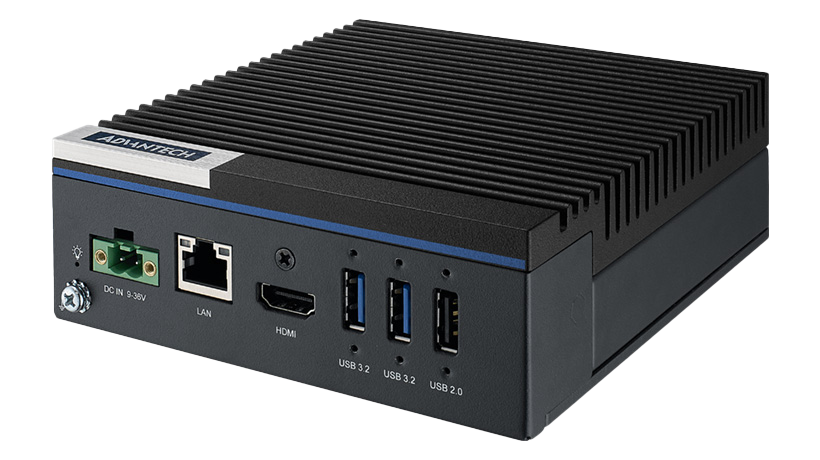

MIC-711-ON3A1
NVIDIA®Jetson Orin Nano
8G Lite AI System

US$1,005.00
MIC-711-OX4A1
NVIDIA®Jetson Orin NX
16G Lite AI System

US$1,695.00

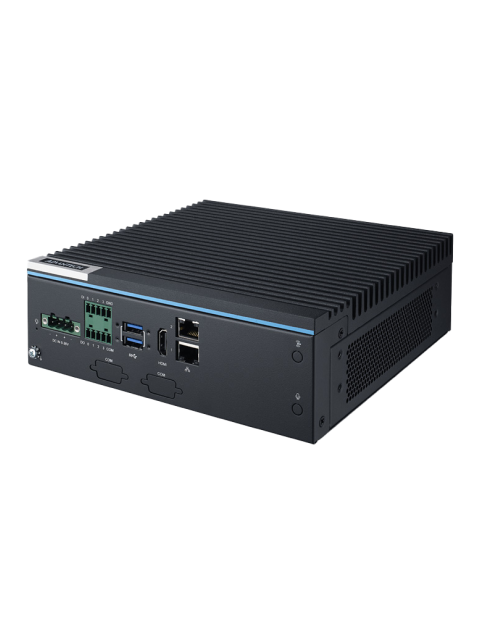

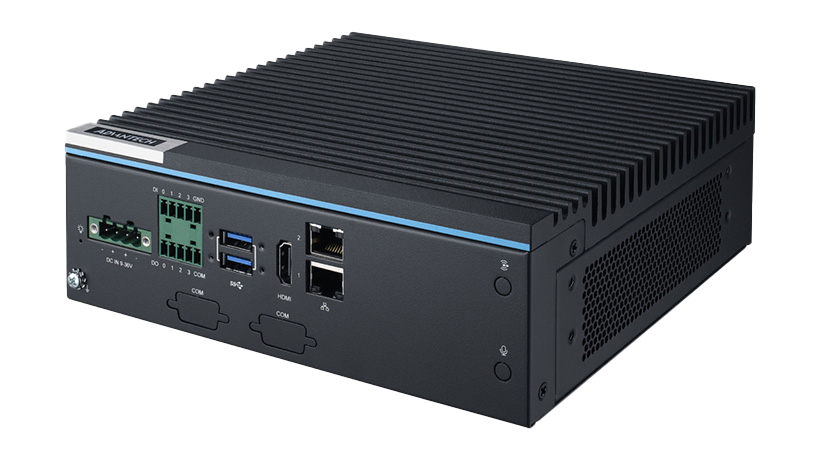

MIC-713-OX3A1
NVIDIA®Jetson Orin NX
8GB AI Platform

US$1,465.00
Computing Power 40 TOPS 100 TOPS
PROCESSOR
CPU 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU (1.5MB L2 + 4MB L3) 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU (2MB L2 + 4MB L3) 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU (1.5MB L2 + 4MB L3)
GPU 1024-core
NVIDIA Ampere GPU with 32 Tensor Cores
Memory 8GB LPDDR5 16GB LPDDR5 8GB LPDDR5
STORAGE
M.2 1 x M.2 2280 (M-Key, NVMe, Signal: PCIe x4) 1 x M.2 2280 (Signal: PCIe x1, Gen 4)
SD Card 1 x Micro SD
I/O
Ethernet 1 x 10/100/1000 Mbps
Display HDMI (Max. resolution 3840x2160 @ 60Hz)
USB
External
2 x USB 3.2 Gen 2, 1 x USB 2.0
Internal
1 x USB 2.0 (by pin header)
External
2 x USB 3.2 Gen 1, 1 x USB 2.0
Internal
1 x USB 2.0 (by pin header)
External
6 x USB 3.2 Gen 2
Internal
-
OTG USB 1 x Micro USB
Digital I/O - - 4-ch DI, 4-ch DO
Serial Port (Optional) - - 2 x RS-232/422/485
(On-board pin header reserved)
CANBus - - 1
EXPANSION
Mini PCIe 1 x mPCIe (Signal: PCIe + USB 2.0)
M.2 1 x M.2 3052 (B-Key, Signal: USB)
SIM 2 x Nano SIM slots
TPM (Optional) - - 1 x TPM 2.0
GMSL (Optional) - - 2-ch GMSL2.0 with FAKRA connectors
POWER
Mode Terminal block, 2-pin, AT
Input Voltage 9 ~ 36 VDC
MECHANICAL
Dimensions 130 x 130 x 46 mm (W x D x H) 194.8 x 174.3 x 65.85 mm (W x D x H)
Weight 1.2 kg (2.65 lb) 2.05 kg (w/o packing material)
Installation Desktop / Wall mount Desktop
CERTIFICATIONS
Certifications CB/UL/CE/FCC/BSMI/CCC
(No RED certification)		 CE/FCC/UKCA/CB/UL/BSMI/CCC
(No RED certification)
ENVIROMENT
Operating Temperature* -10 ~ 60 °C with 0.7 m/s air flow
Operating Humidity 95% @ 40 °C (non-condensing)
Vibration 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
Shock 10G / 11ms
MIC-711-ON3A1
NVIDIA®Jetson Orin Nano
8G Lite AI System
40 TOPS
MIC-711-OX4A1
NVIDIA®Jetson Orin NX
16G Lite AI System
100 TOPS
MIC-713-OX3A1
NVIDIA®Jetson Orin NX
8GB AI Platform
100 TOPS
  • CPU 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU (1.5MB L2 + 4MB L3)
  • CPU 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU (2MB L2 + 4MB L3)
  • CPU
    6-core Arm® Cortex®-A78AE v8.2 64-bit CPU (1.5MB L2 + 4MB L3)
  • GPU 1024-core
    NVIDIA Ampere GPU with 32 Tensor Cores
  • Memory 8GB LPDDR5
  • Memory 16GB LPDDR5
  • Memory
    8GB LPDDR5
  • M.2 1 x M.2 2280
    (M-Key, NVMe, Signal: PCIe x4)
  • M.2 1 x M.2 2280
    (Signal: PCIe x1, Gen 4)
  • SD Card 1 x Micro SD
  • Ethernet 1 x 10/100/1000 Mbps
  • Display HDMI (Max. resolution 3840x2160 @ 60Hz)
  • USB [External]
    2 x USB 3.2 Gen 2, 1 x USB 2.0
    [Internal]
    1 x USB 2.0 (by pin header)
  • USB [External]
    2 x USB 3.2 Gen 1, 1 x USB 2.0
    [Internal]
    1 x USB 2.0 (by pin header)
  • USB [External]
    6 x USB 3.2 Gen 2
    [Internal]
    -
  •
  • Digital I/O 4-ch DI, 4-ch DO
  •
  • DSerial Port (Optional) 2 x RS-232/422/485
    (On-board pin header reserved)
  •
  • CANBus 1
  • Mini PCIe 1 x mPCIe (Signal: PCIe + USB 2.0)
  • M.2 1 x M.2 3052 (B-Key, Signal: USB)
  • SIM 2 x Nano SIM slots
  •
  • TPM (Optional) 1 x TPM 2.0
  •
  • GMSL (Optional) 2-ch GMSL2.0 with FAKRA connectors
  • Mode Terminal block, 2-pin, AT
  • Input Voltage 9 ~ 36 VDC
  • Dimensions 130 x 130 x 46 mm (W x D x H)
  • Dimensions 194.8 x 174.3 x 65.85 mm (W x D x H)
  • Weight 1.2 kg (2.65 lb)
  • Weight 2.05 kg (w/o packing material)
  • Installation Desktop / Wall mount
  • Installation Desktop
  • Certifications CB/UL/CE/FCC/BSMI/CCC
    (No RED certification)
  • Certifications CE/FCC/UKCA/CB/UL/BSMI/CCC
    (No RED certification)
  • Operating Temperature* -10 ~ 60 °C with 0.7 m/s air flow
  • Operating Humidity 95% @ 40 °C (non-condensing)
  • Vibration 3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis
  • Shock 10G / 11ms

New AI Capabilities

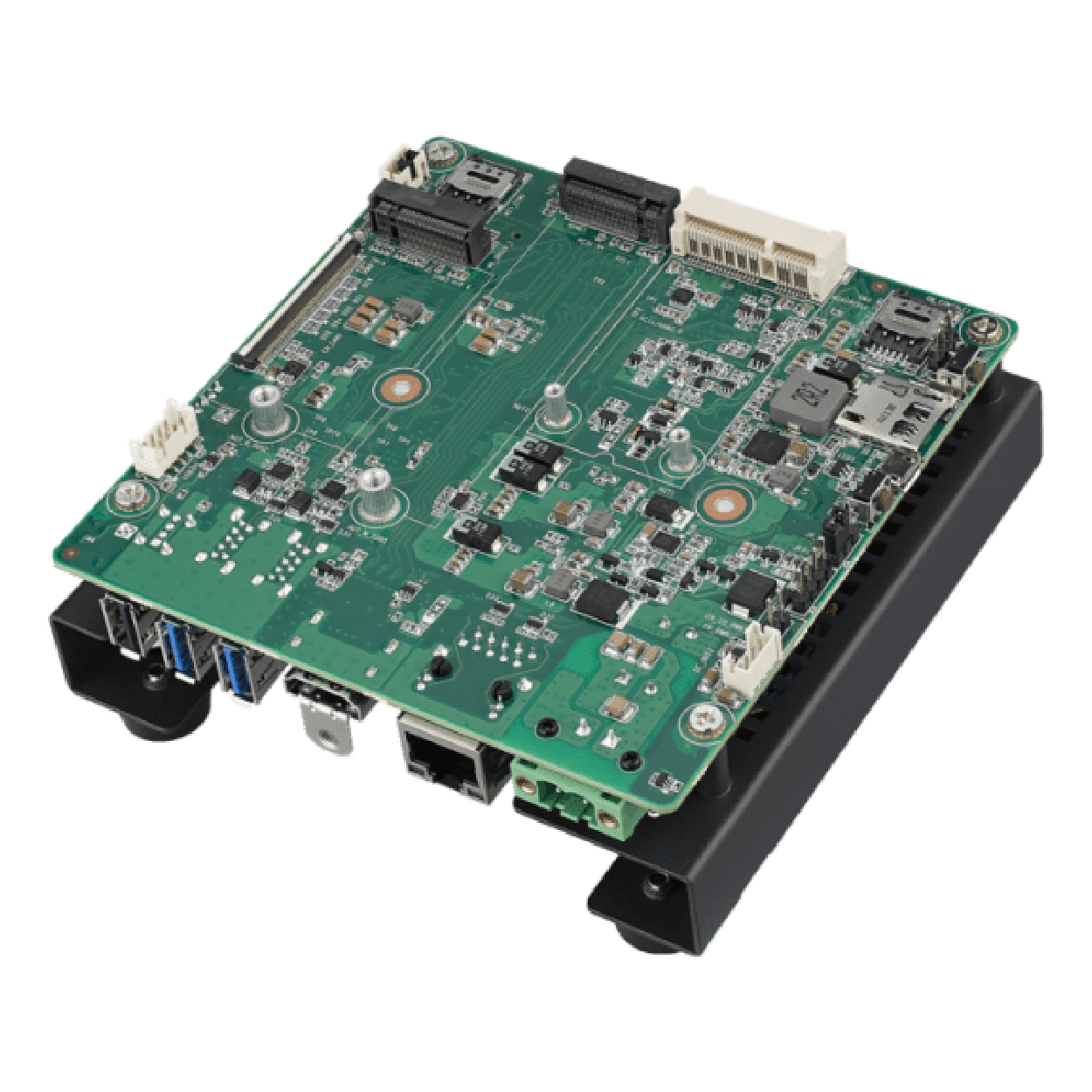

AI Development Kit

Specifically designed for developers’ testing needs, this AI development kit features an open-framework carrier design that enables rapid building and validation of AI applications. Developers can swiftly construct and test AI solutions, accelerating development cycles and enhancing efficiency in bringing AI innovations to life.

Fast Peripheral Integration

Seamlessly integrates and tests with various peripherals.

Ideal for AI Model PoC

AI development kit designed for Proof of Concept (PoC) for AI models.

Expanded I/O for PoC Deployment

Offers enhanced I/O expansion for deploying AI solutions in diverse environments.

Table

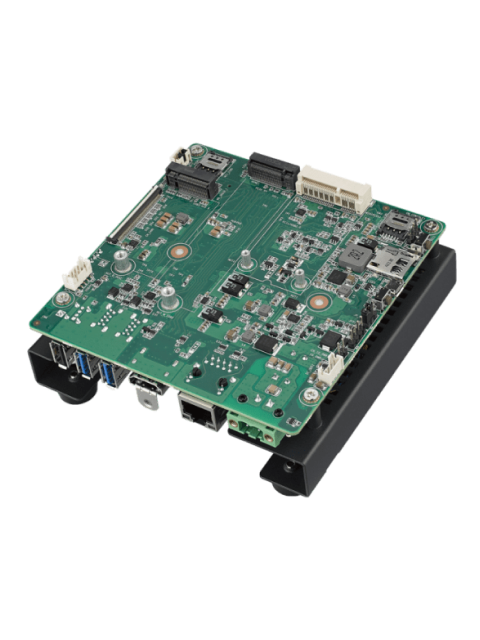

MIC-711D-ON2A1
NVIDIA®Jetson Orin Nano

US$445.00
MIC-711D-OX3A1
NVIDIA®Jetson Orin NX 8G

US$720.00
MIC-711D-OX4A1
NVIDIA®Jetson Orin NX 16G

US$1,075.00
Computing Power 40 TOPS 100 TOPS
PROCESSOR
CPU 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU (1.5MB L2 + 4MB L3) 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU (1.5MB L2 + 4MB L3) 8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU (2MB L2 + 4MB L3)
GPU 512-core
NVIDIA Ampere architecture GPU with 16 Tensor Cores		 1024-core
NVIDIA Ampere GPU with 32 Tensor Cores
Memory 4GB LPDDR5 8GB LPDDR5 16GB LPDDR5
STORAGE
M.2 1 x M.2 2280 (M-Key, NVMe, Signal: PCIe x4)
SD Card 1 x Micro SD
I/O
Ethernet 1 x 10/100/1000 Mbps
Display HDMI (Max. resolution 3840x2160 @ 60Hz)
USB
External
2 x USB 3.2 Gen 2, 1 x USB 2.0
Internal
1 x USB 2.0 (by pin header)
External
2 x USB 3.2 Gen 1, 1 x USB 2.0
Internal
1 x USB 2.0 (by pin header)
OTG USB 1 x Micro USB
EXPANSION
Mini PCIe 1 x mPCIe (Signal: PCIe + USB 2.0)
M.2 1 x M.2 3052 (B-Key, Signal: USB)
SIM 2 x Nano SIM slots
GMSL (Optional) 2-ch GMSL2.0 with FAKRA connectors
FAN
Dimension 60 x 60 x 13 mm (2.36" x 2.36" x 0.51")
RPM 5400 RPM
POWER
Mode Terminal block, 2-pin, AT
Input Voltage 9 ~ 36 VDC
MECHANICAL
Dimensions 125 x 125 x 51 mm (W x D x H)
Weight 0.8 kg (1.76 lb)
Installation Desktop
MIC-711D-ON2A1
NVIDIA®Jetson
Orin Nano 4G
40 TOPS
MIC-711D-OX3A1
NVIDIA®Jetson
Orin NX 8G
100 TOPS
MIC-711D-OX4A1
NVIDIA®Jetson
Orin NX 16G
100 TOPS
  • CPU 6-core Arm® Cortex®-A78AE v8.2 64-bit CPU (1.5MB L2 + 4MB L3)
  • CPU 6-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU (1.5MB L2 + 4MB L3)
  • CPU
    8-core NVIDIA Arm® Cortex A78AE v8.2 64-bit CPU (2MB L2 + 4MB L3)
  • GPU 512-core
    NVIDIA Ampere architecture GPU with 16 Tensor Cores
  • GPU 1024-core
    NVIDIA Ampere GPU with 32 Tensor Cores
  • Memory 4GB LPDDR5
  • Memory 8GB LPDDR5
  • Memory
    16GB LPDDR5
  • M.2 1 x M.2 2280 (M-Key, NVMe, Signal: PCIe x4)
  • SD Card 1 x Micro SD
  • Ethernet 1 x 10/100/1000 Mbps
  • Display HDMI (Max. resolution 3840x2160 @ 60Hz)
  • USB [External]
    2 x USB 3.2 Gen 1, 1 x USB 2.0
    [Internal]
    1 x USB 2.0 (by pin header)
  • USB [External]
    2 x USB 3.2 Gen 1, 1 x USB 2.0
    [Internal]
    1 x USB 2.0 (by pin header)
  • OTG USB 1 x Micro USB
  • Mini PCIe 1 x mPCIe (Signal: PCIe + USB 2.0)
  • M.2 1 x M.2 3052 (B-Key, Signal: USB)
  • SIM 2 x Nano SIM slots
  • GMSL (Optional) 2-ch GMSL2.0 with FAKRA connectors
  • Dimension 60 x 60 x 13 mm (2.36" x 2.36" x 0.51")
  • RPM 5400 RPM
  • Mode Terminal block, 2-pin, AT
  • Input Voltage 9 ~ 36 VDC
  • Dimensions 125 x 125 x 51 mm (W x D x H)
  • Weight 0.8 kg (1.76 lb)
  • Installation Desktop

Unlock Advanced AI Capabilities

NVIDIA PERFORMANCE REVOLUTION

Experience a significant leap in AI performance with the NVIDIA Jetson Orin NX Developer Kit, surpassing the Xavier NX by offering higher computational power and improved support for high-speed devices. Advantech’s Orin development board further elevates these advancements by providing:

Seamless Camera Integration

Effortlessly integrate cameras for real-time image capture, accelerating your AI application development process.

Flexible Wireless Connectivity

Ideal for large-scale, AI-driven unmanned applications with adaptable wireless communication options, ensuring reliable connectivity in diverse environments.

AI product industry application cases
How Companies Are Leveraging AI to Drive Efficiency
Cutting Production Costs with AI
  • 01
  • 02
  • 03
  • 04
  • 05
  • 06

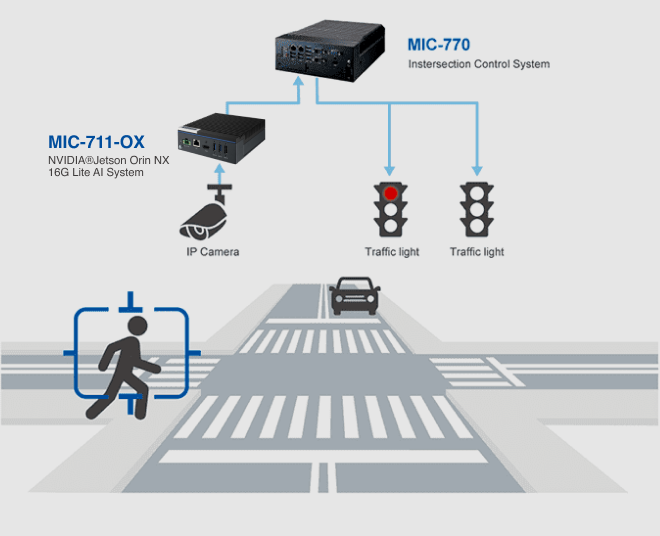

  • System Diagram 01
    Traffic Signal Management System
    AI Smart Traffic Signals: Enhancing Smart City Efficiency and Reducing Emissions
    To minimize unnecessary waiting at red lights during nighttime and improve driving efficiency, Taipei City’s Department of Transportation implemented an AI smart traffic signal control system on Wenlin North Road in 2019. This system integrates intersection surveillance cameras, Advantech’s MIC-720 industrial-grade edge AI computing platform, and CTK’s AI algorithms. It dynamically adjusts traffic signal timings based on real-time vehicular and pedestrian flow, effectively resolving existing traffic challenges.
    MIC-711-OX4A1
    NVIDIA Jetson Orin NX 16G Lite AI System
    US$1,695.00
    MIC-711D-OX4A1
    NVIDIA Jetson Orin NX 16G Developer Kit
    US$1,075.00
    MIC-713-OX3A1
    MIC-713_Orin NX 8GB_2 Lan
    US$1,465.00

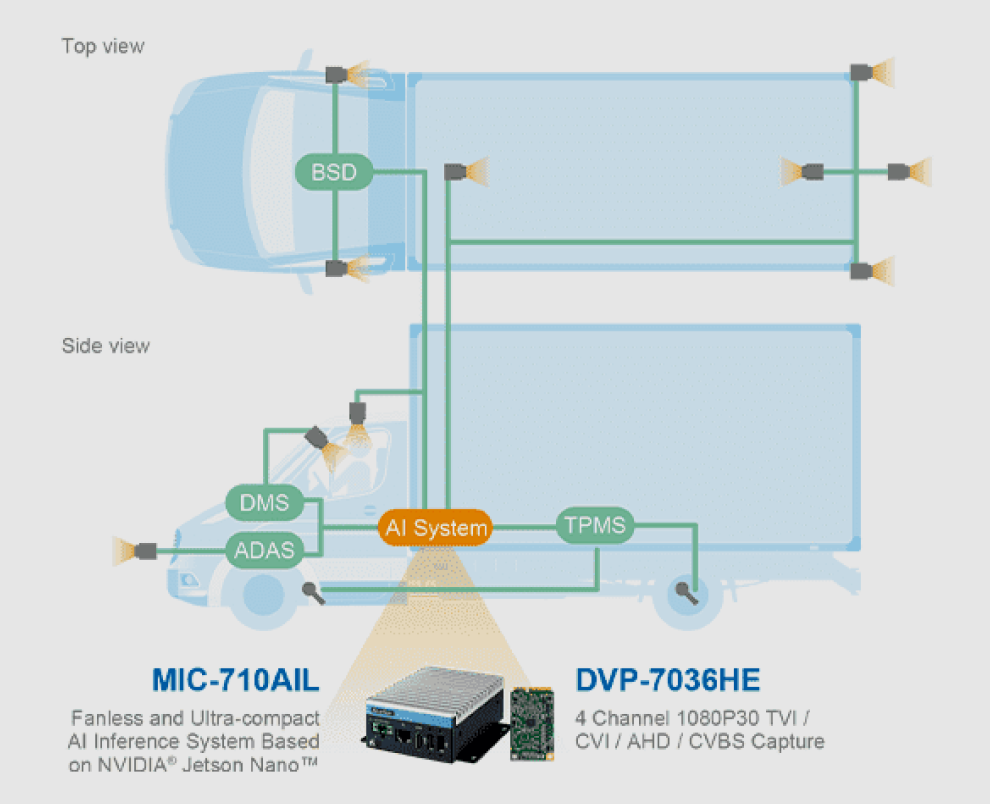

  • System Diagram 02
    AI Logistics Fleet Management System
    Creating a Safer Driving Environment for Fleet Drivers
    In collaboration with Zhihui, Advantech, and CTK, the AI fleet management system not only provides real-time alerts to drivers to adhere to traffic regulations but also records footage that serves as evidence to clarify responsibilities in case of incidents. This system enables managers to develop safety reward mechanisms and phase out drivers exhibiting dangerous driving behaviors, promoting overall fleet safety.

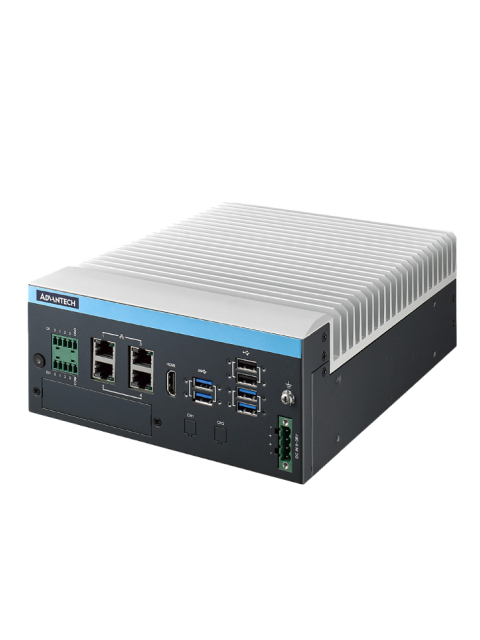

    MIC-733-AO6A1
    NVIDIA AGX ORIN_64G system
    US$4,235.00
    MIC-770V3H-00A1
    Modular IPC, 12th/13th/14th Gen Intel® Core™ i CPU
    US$1,015.00
    AINavi-SDK
    Comprehensive SDK with pre-trained AI models

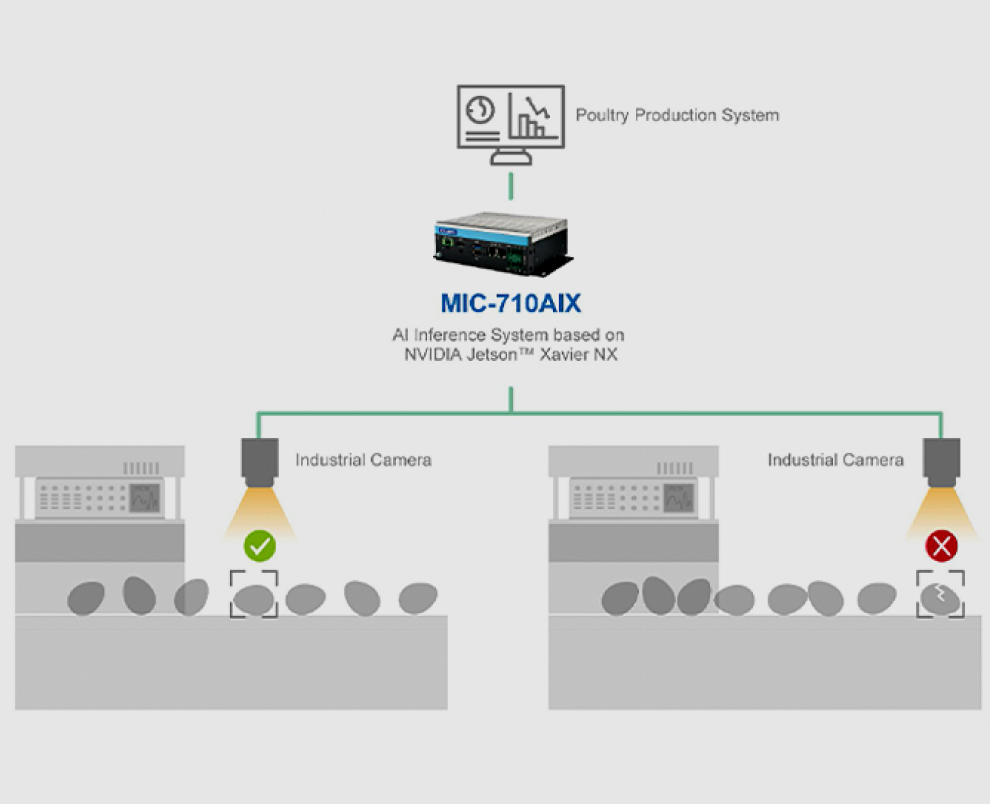

  • System Diagram 03
    AI Egg Inspection
    Rapid Egg Quality Detection and Grading with AI Optical Inspection
    With an average of 2.5 million chickens per poultry house in the United States, large-scale farms require high-quality, high-volume egg production. Previously reliant on human visual inspection, egg farmers are now adopting automated equipment paired with AI optical inspection to swiftly and efficiently detect cracked eggs and shell pores. This technology grades eggs based on quality, accelerates production speed, and compensates for labor shortages due to rural depopulation.
    MIC-711-ON3A1
    NVIDIA Jetson Orin Nano 8G Lite AI System
    US$1,005.00

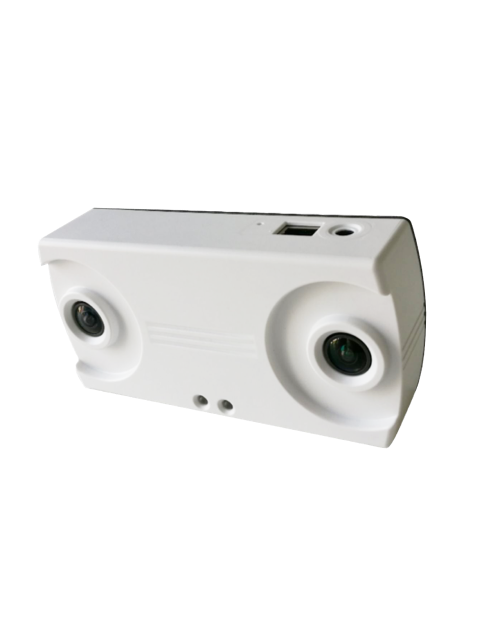

    UCAM-130B-U01
    3D Smart Counting Camera(1.9mm) / mounting kit
    US$600.00

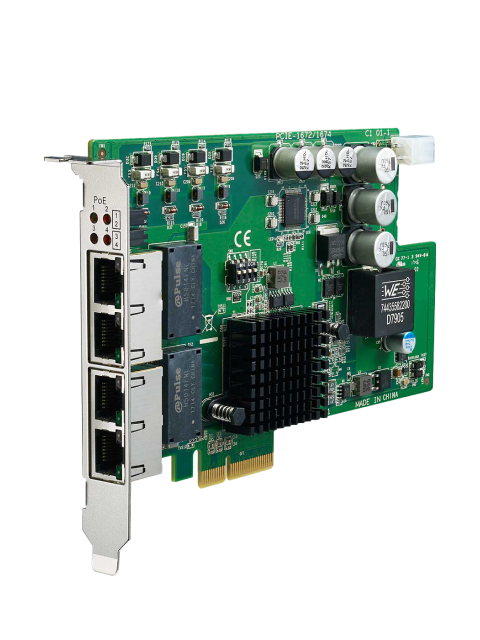

    PCIE-1674V-CE
    4-port PCIe programmable power on/off card
    US$330.00

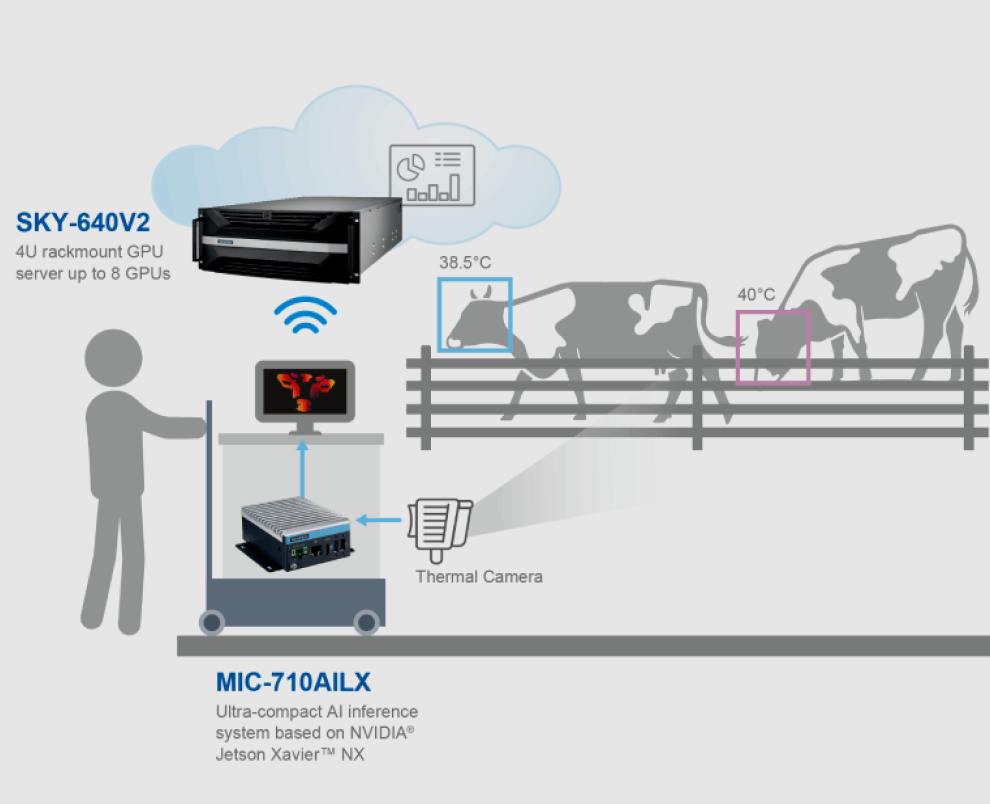

  • System Diagram 04
    AI Visual Monitoring of Animal Health
    AI-Powered Cattle Farming: Easily Detect Fevers for Precise Treatment
    Taiwan’s hot and humid climate fosters environmental microorganisms that can harm cattle, making body temperature a key health indicator. Modern farms use infrared thermal imaging to capture moving cattle, with AI analyzing the area around the cows’ eyes to determine if they have a fever. This approach reduces the time and risk associated with manual measurements, allowing for rapid assessment of dairy cow health.

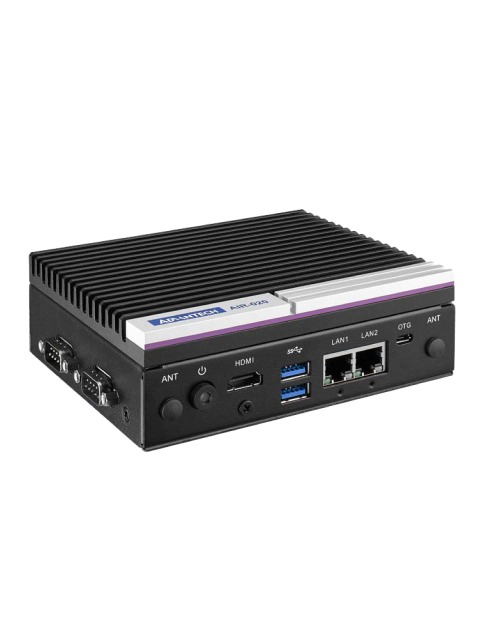

    AIR-020X-S9A1
    Edge AI NVIDIA Xavier NX inference system
    US$1,605.00

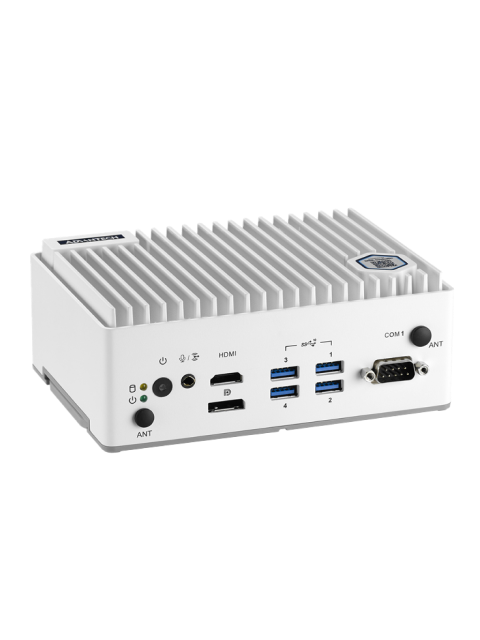

    EI-52-U0A1
    Intel Celeron 6305E, w/8G RAM, 64G SSD, ADP
    US$820.00
    MIC-711D-ON2A1
    NVIDIA® Jetson Orin™ Nano 4G Developer Kit
    US$445.00

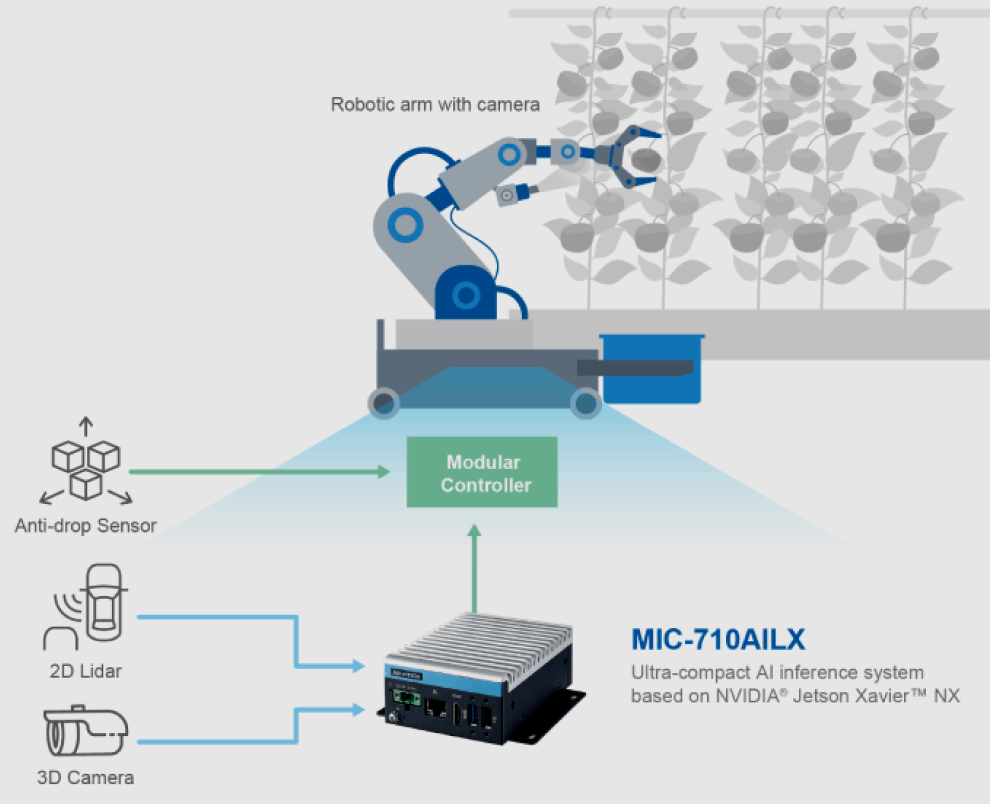

  • System Diagram 05
    AI Fruit Picking Robot
    Autonomous Tomato Harvesting Robots: Innovative Solutions for Aging Rural Communities
    Rural depopulation and aging populations are challenges faced by developed countries. Stabilizing agricultural output and reducing import dependence are critical national issues. Utilizing AI-powered autonomous robots, 3D cameras recognize tomato rows while arm-mounted cameras collect fruit images. AI evaluates tomato color, size, and defects like pest damage to prioritize high-quality tomatoes for harvesting. The robots collect the tomatoes into baskets and transport them to collection points, significantly reducing labor for harvesting and inspection and increasing efficiency.
    MIC-713-OX3A1
    MIC-713_Orin NX 8GB_2 Lan
    US$1,465.00
    MIC-770H-20A1
    H420E, Modular IPC
    US$980.00
    MIC-711D-OX3A1
    NVIDIA Jetson Orin NX 8G Developer Kit
    US$720.00

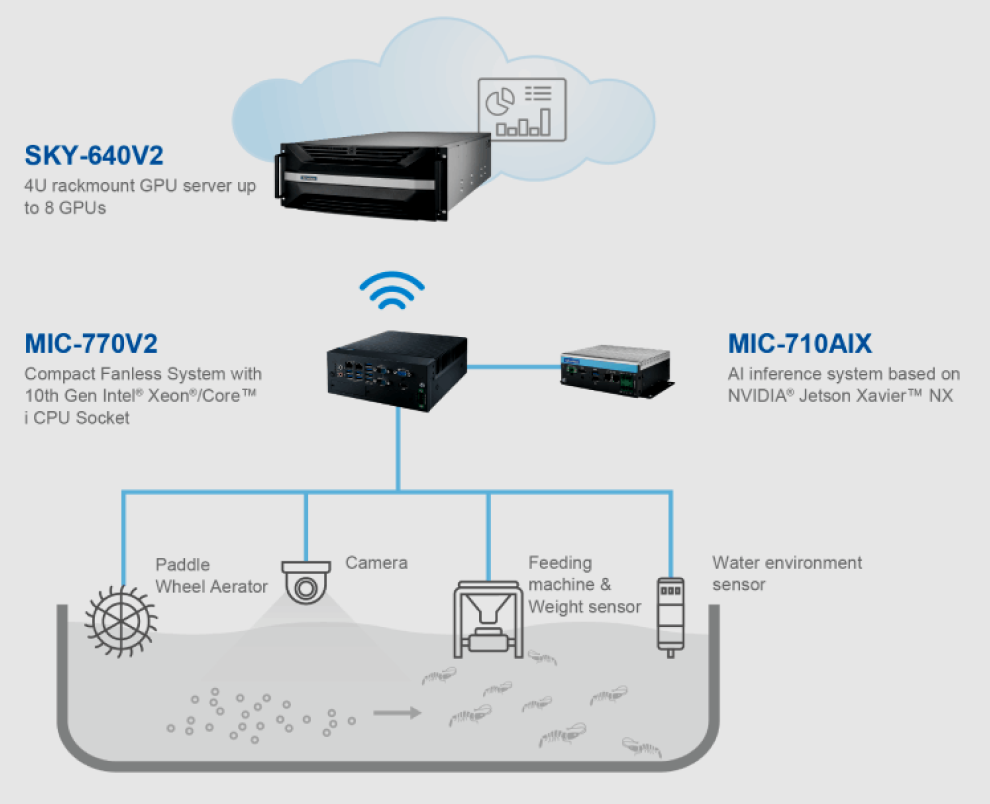

  • System Diagram 06
    AI Monitoring of Aquaculture Environment
    AI-Optimized Shrimp Hatcheries: Precise Feeding Based on Growth Conditions
    Maintaining broodstock shrimp in a comfortable environment is essential for stable production and high hatch rates. Effective management involves careful attention to feeding and tank conditions. Using AI algorithms and cameras to monitor growth, combined with data on water oxygen levels and salinity, allows for precise feed distribution. This ensures shrimp larvae receive the optimal amount of feed while preventing tank contamination.
    AIR-020N-S4A1
    Edge AI NVIDIA Nano inference system
    US$680.00
    EI-52-S6A1
    Intel Core i5-1145G7E, w/16G RAM,64G SSD, ADP
    US$1,625.00
    MIC-711D-OX4A1
    NVIDIA Jetson Orin NX 16G Developer Kit
    US$1,075.00
